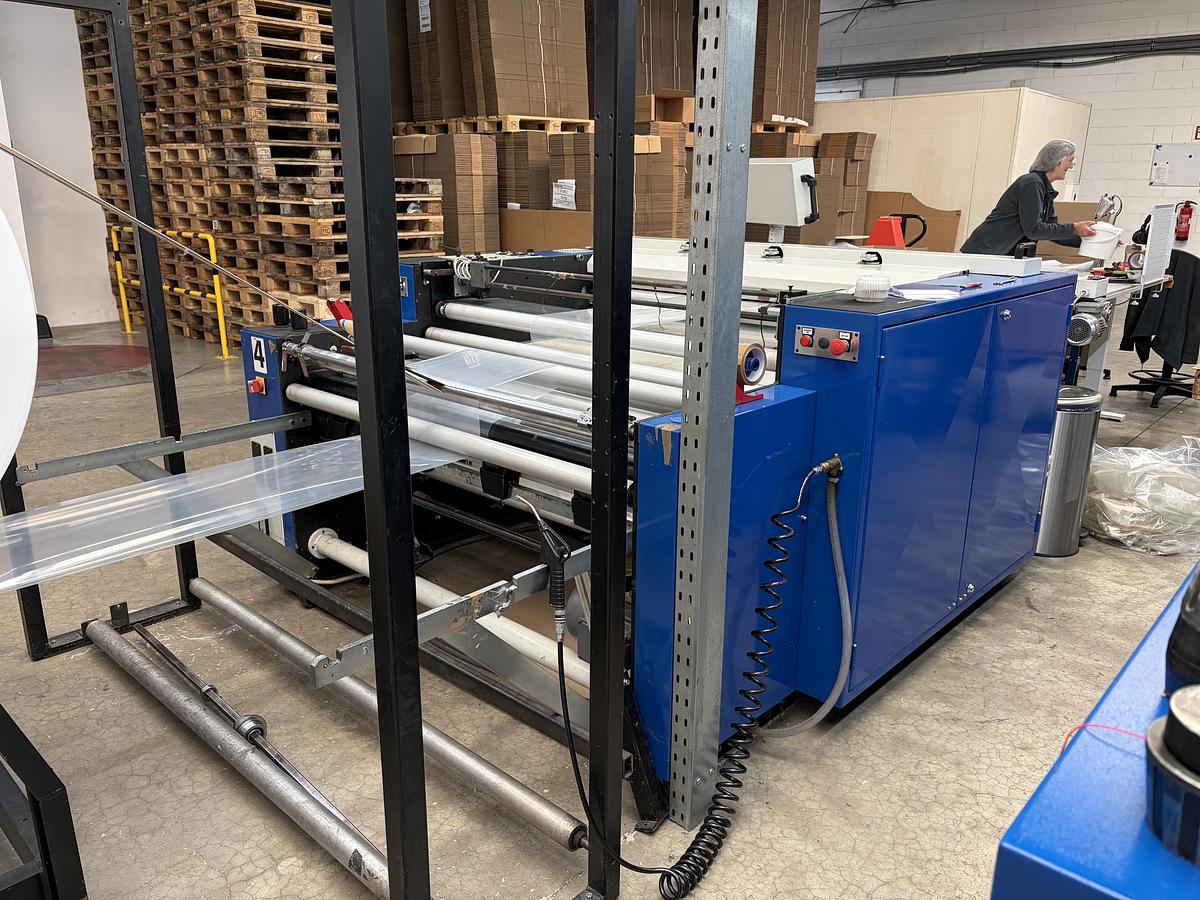

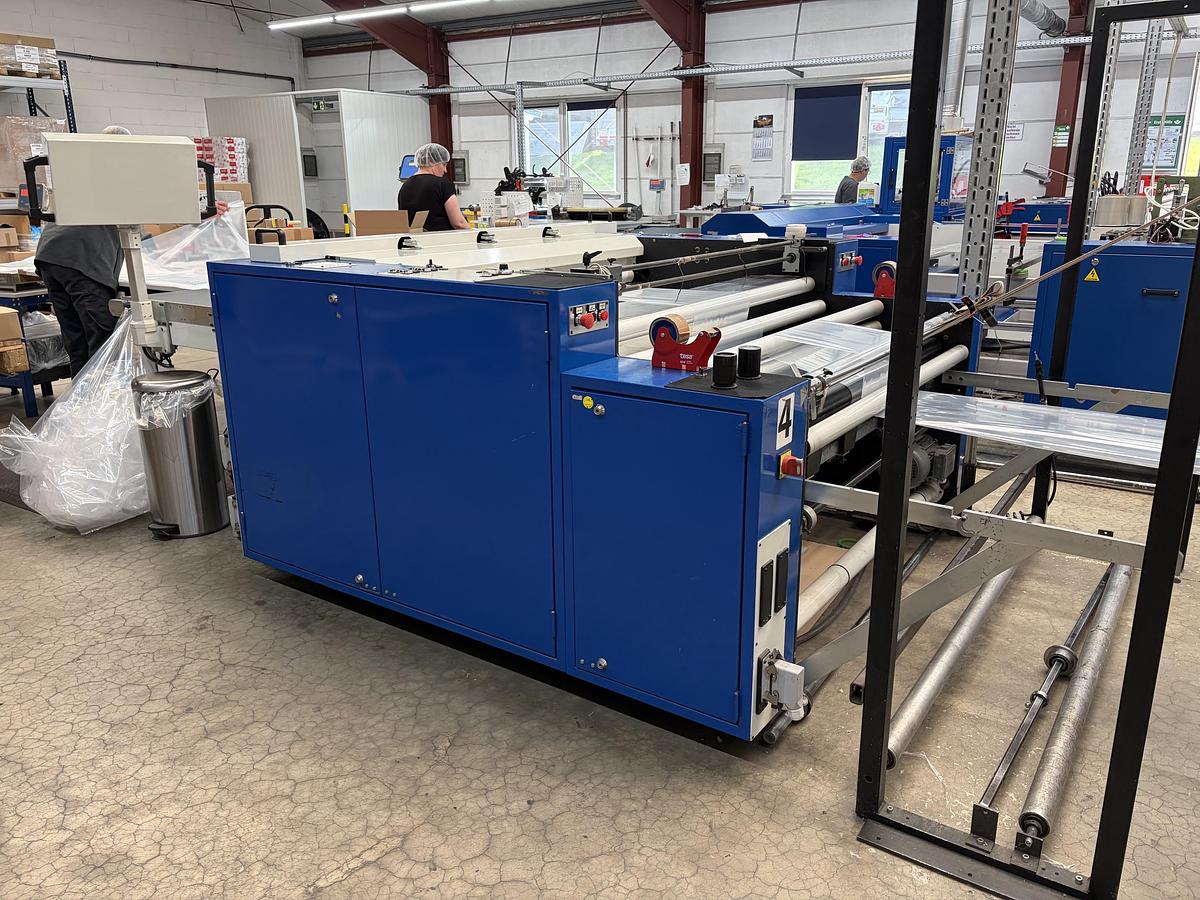

2015 Arvor 1499 Classic

Bottom seal machine with flying knife

Construction year: 2015

Maximum sealing width: 1400mm

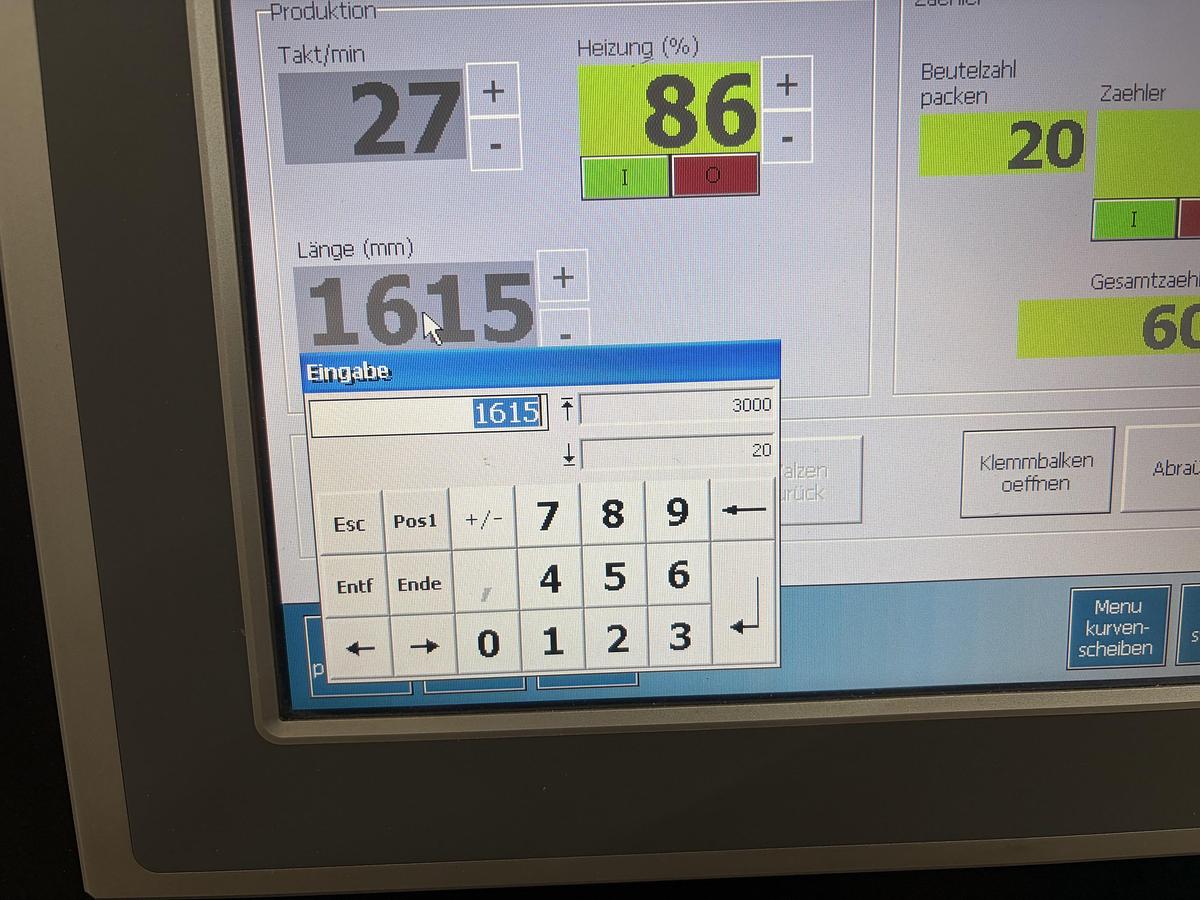

Bag length: 120mm – 3000mm

Speed: 100 cpm

Servo driven film feeding (Lenze)

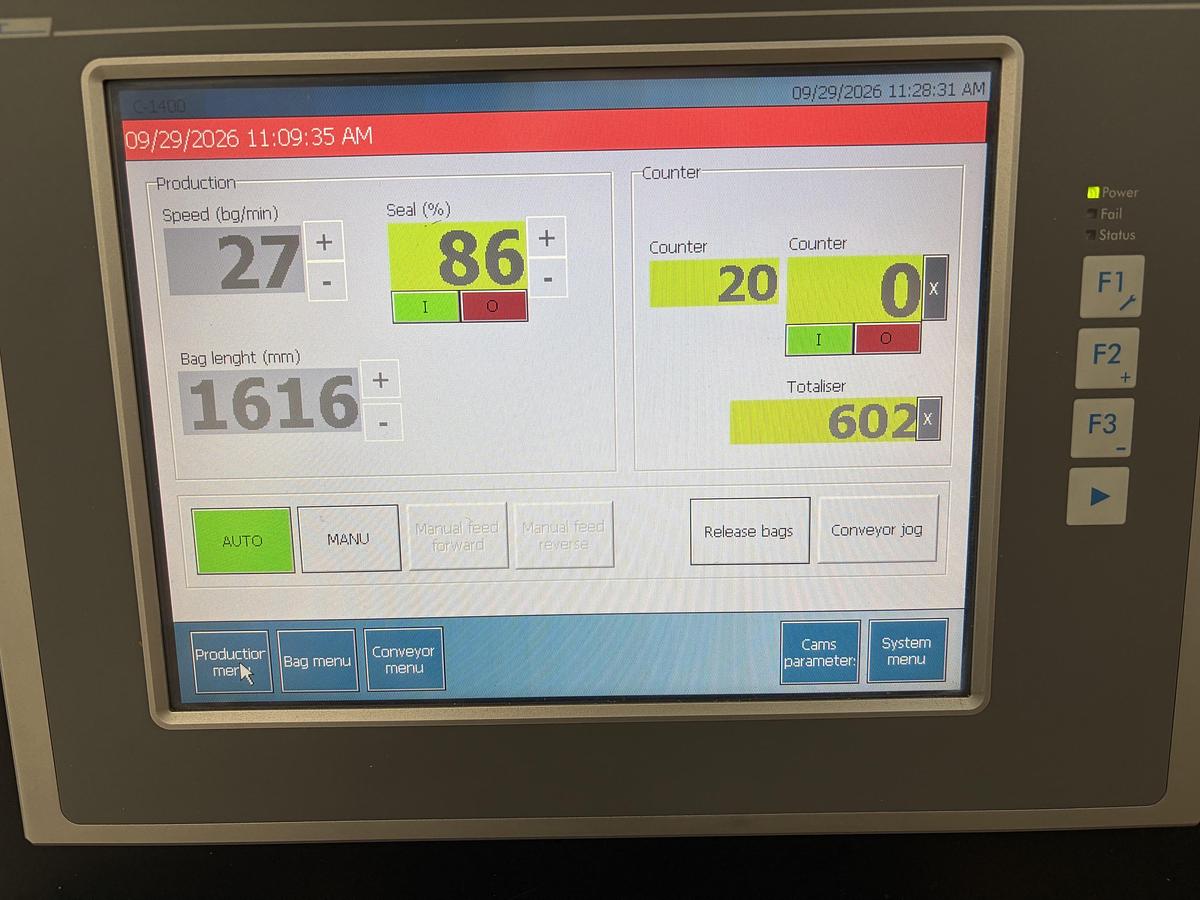

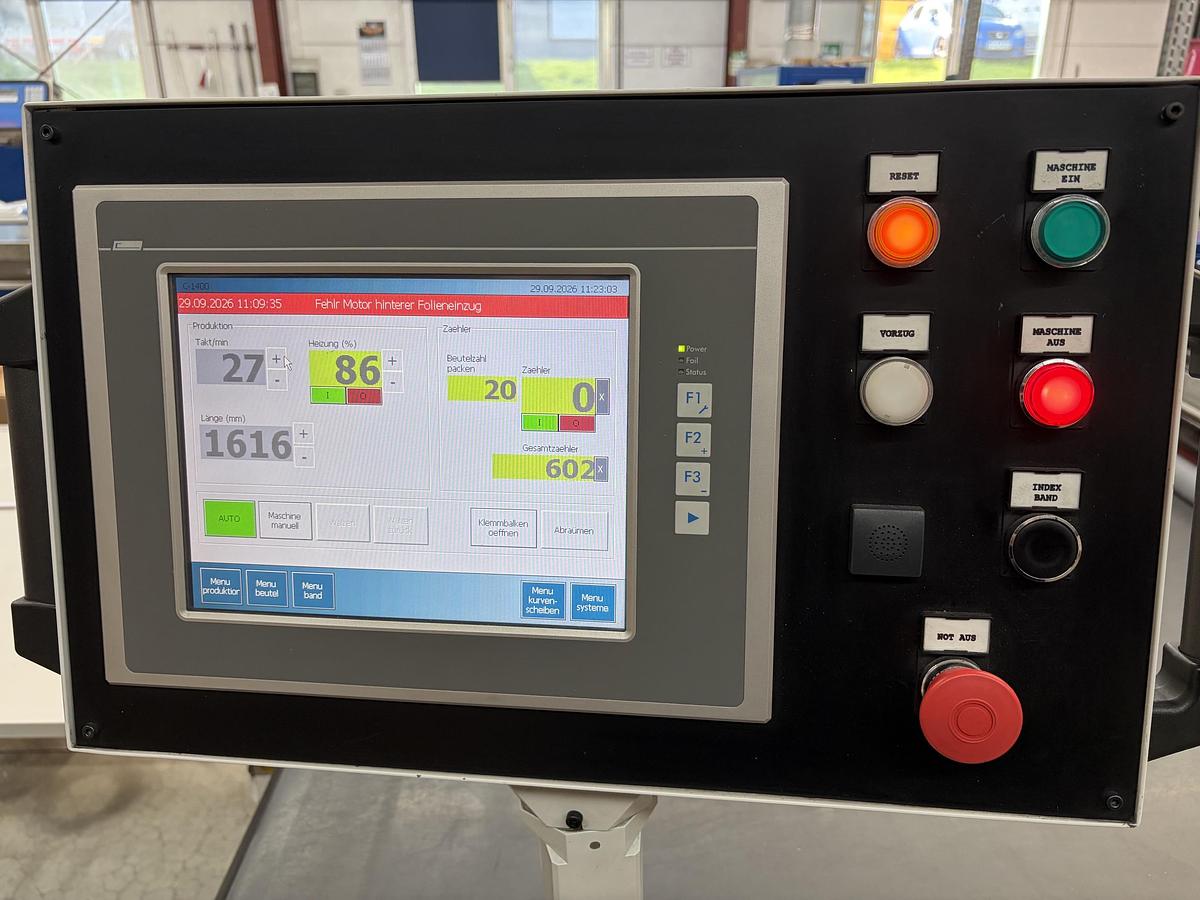

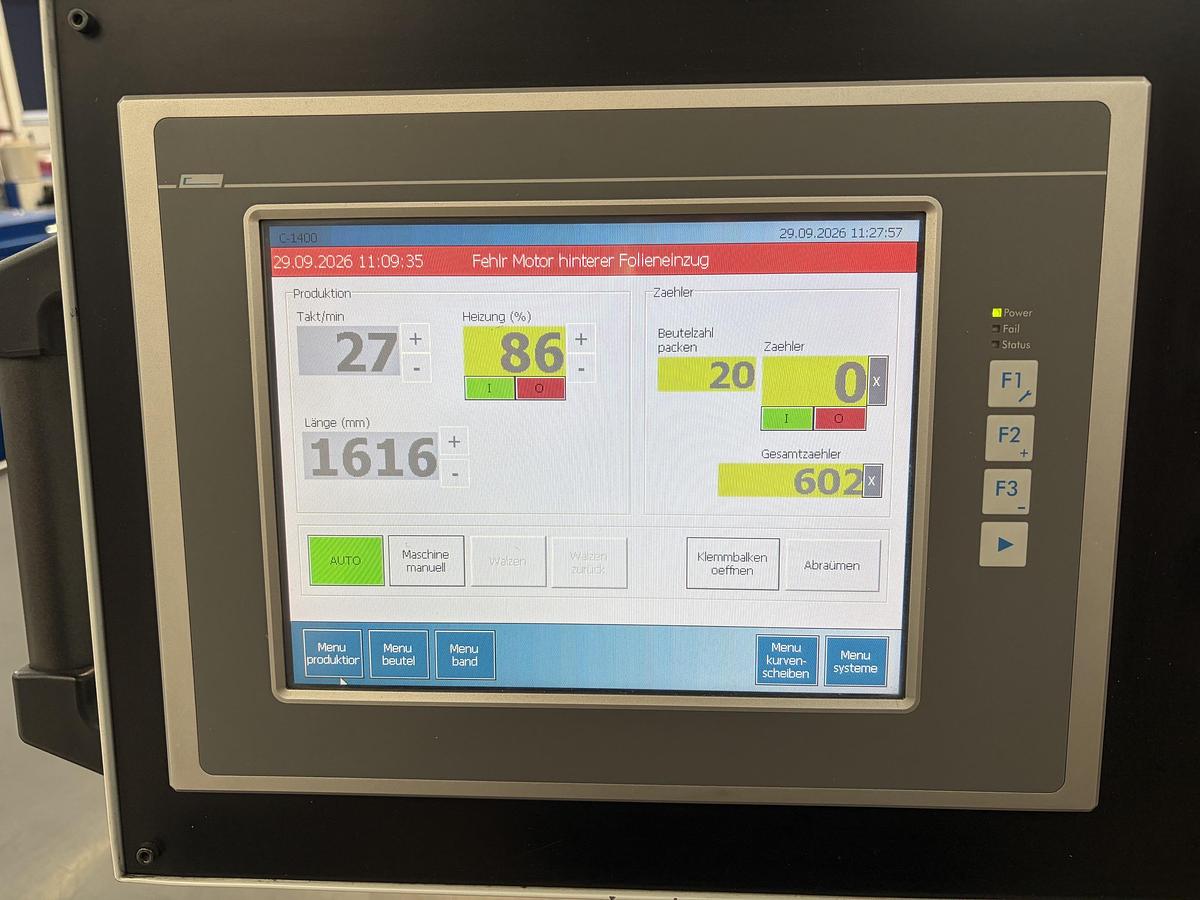

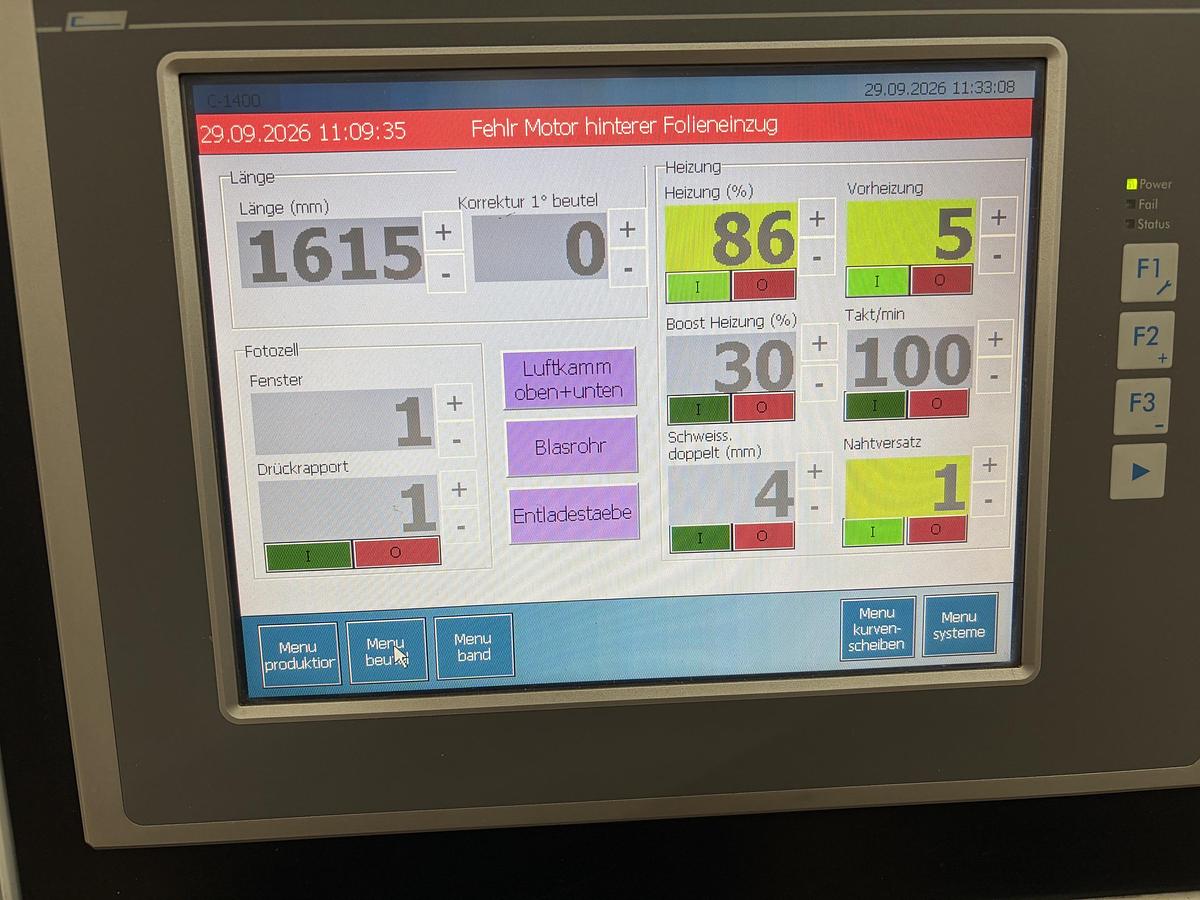

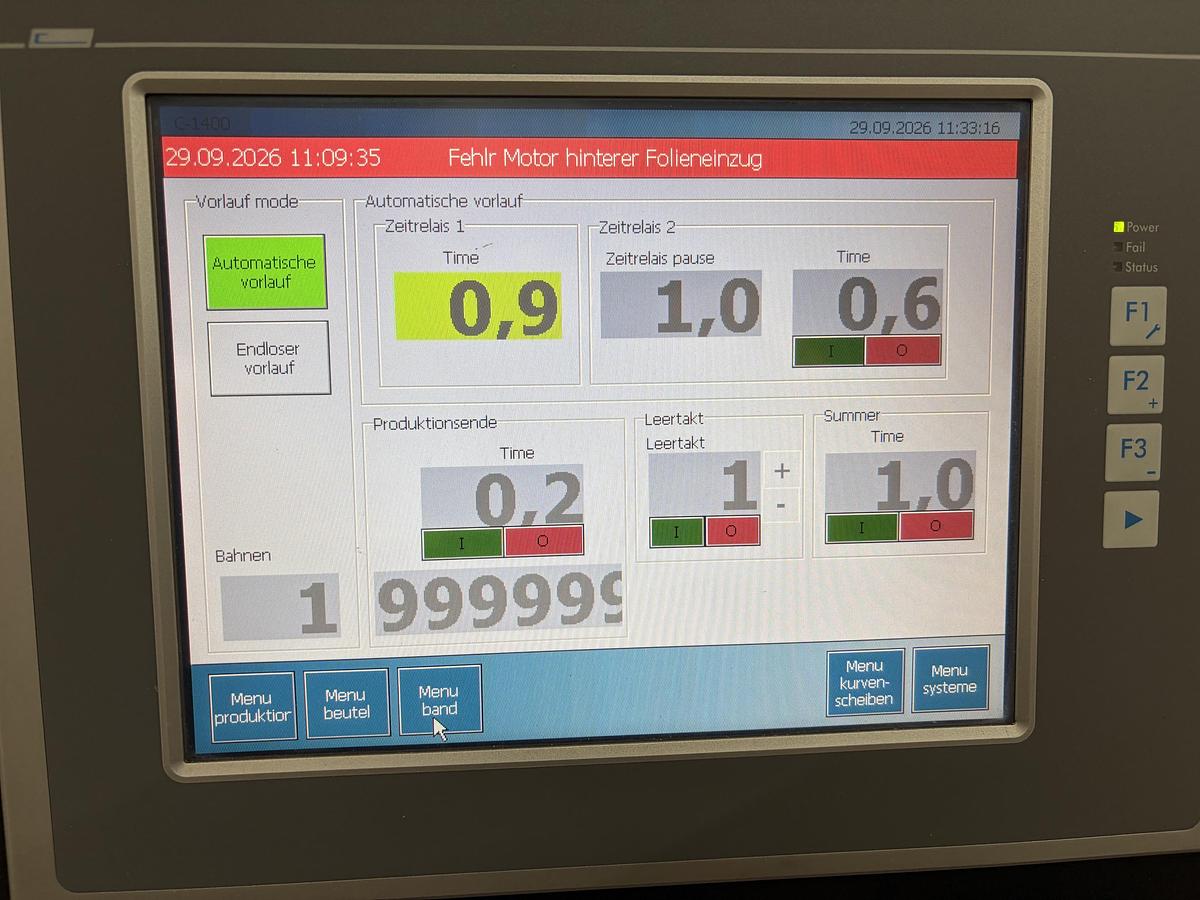

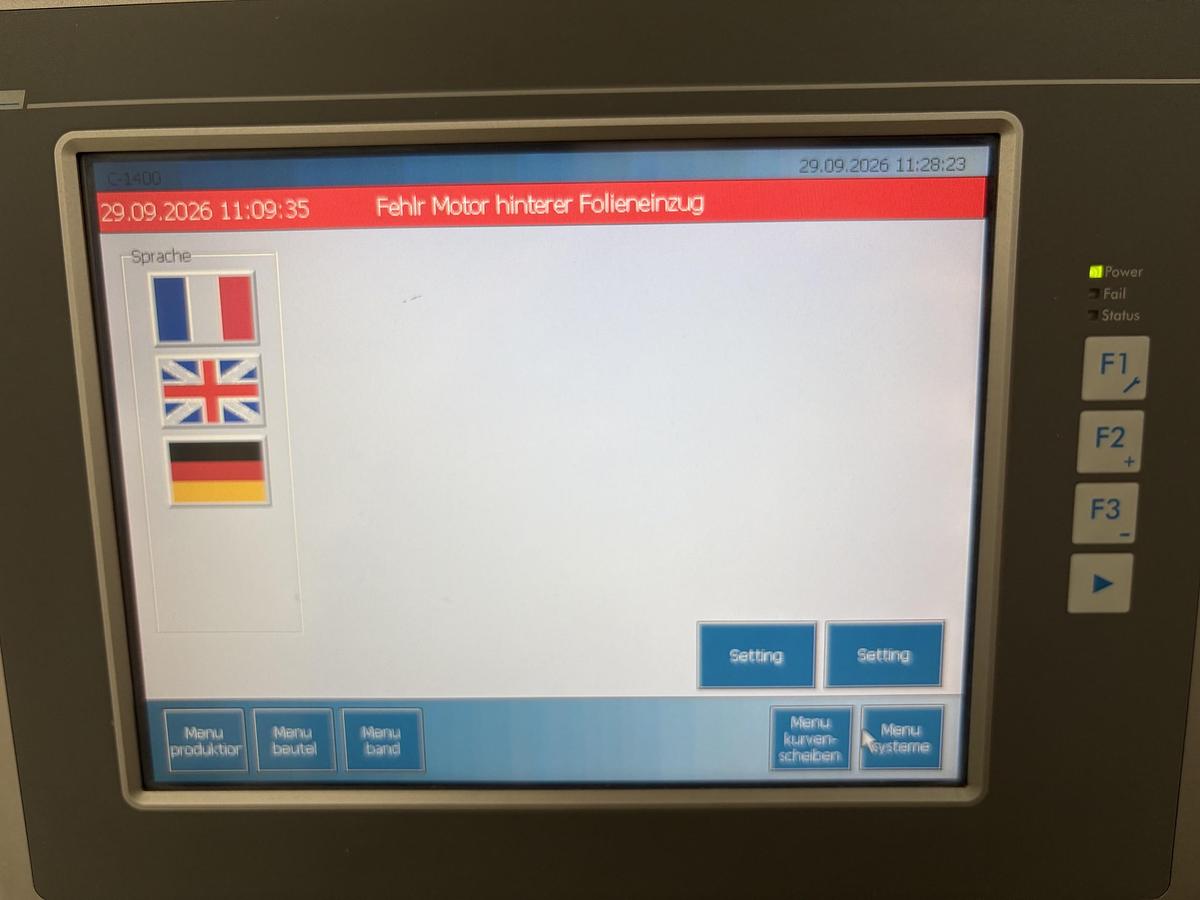

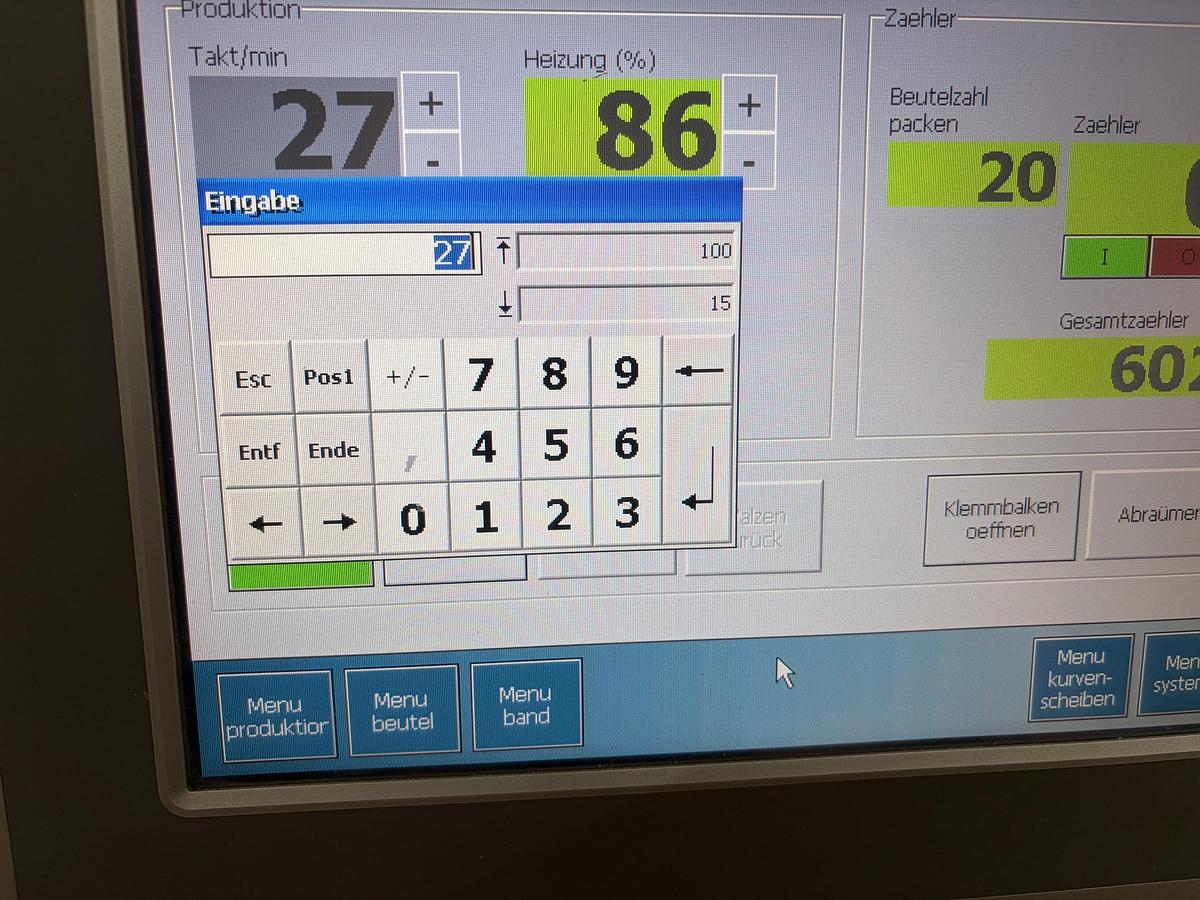

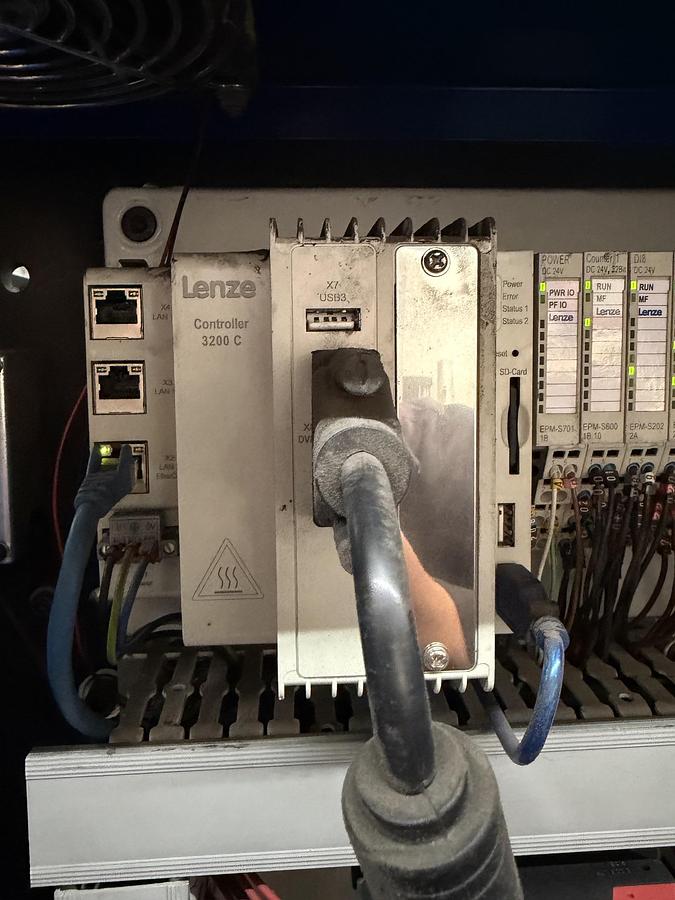

PLC (Lenze)

Unwind with 2 positions + 1 shaft of 25mm + cones

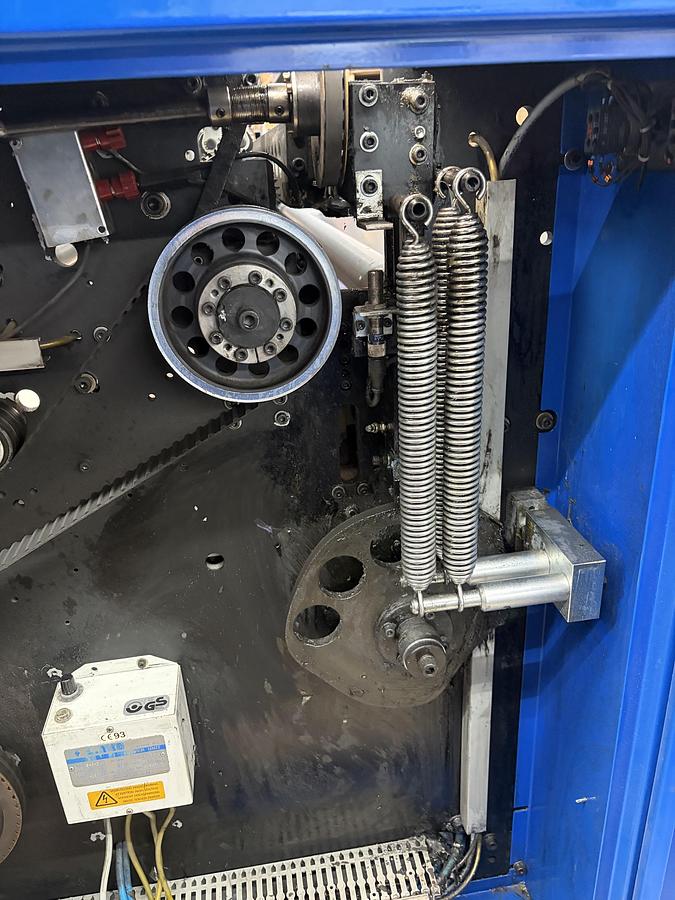

4 roll dancer with infeed motor and rubber infeed roll with nip rolls

Dancer tension can be adjusted by air pressure

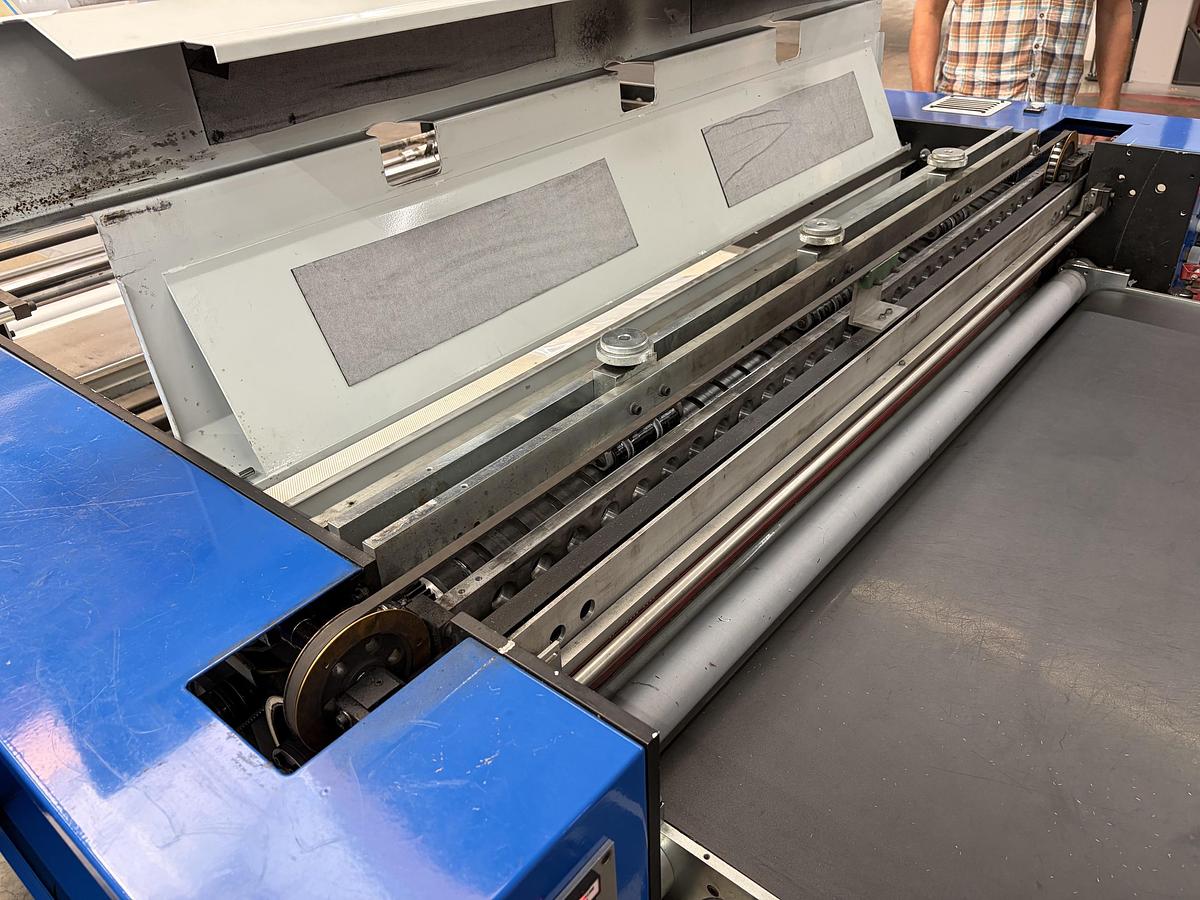

Sealing wires on top and bottom seal bar

3 Simco antistatic bars

Photocell (Datalogic) for printed film + offset roll to position the print

Rubber draw rolls in good condition (Spur gear main draw roll need to be replaced)

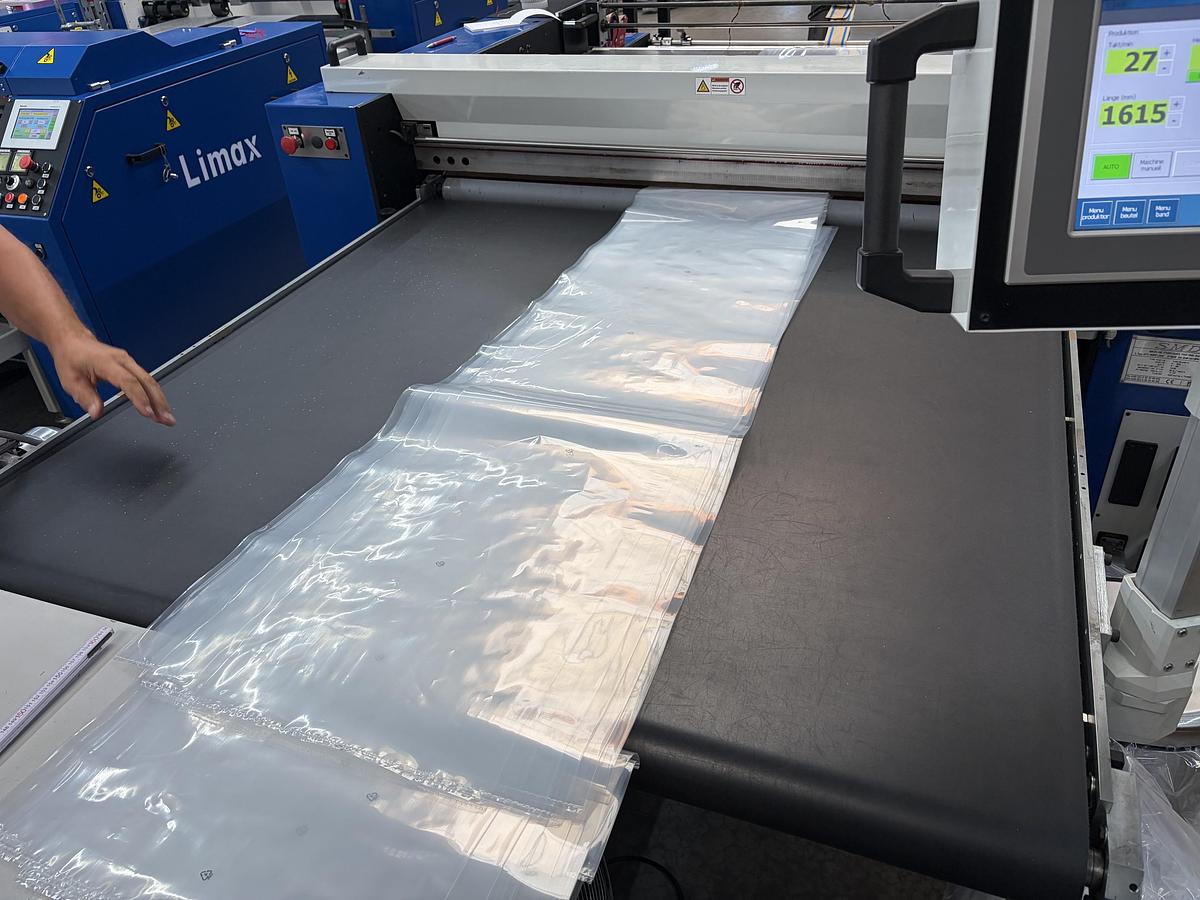

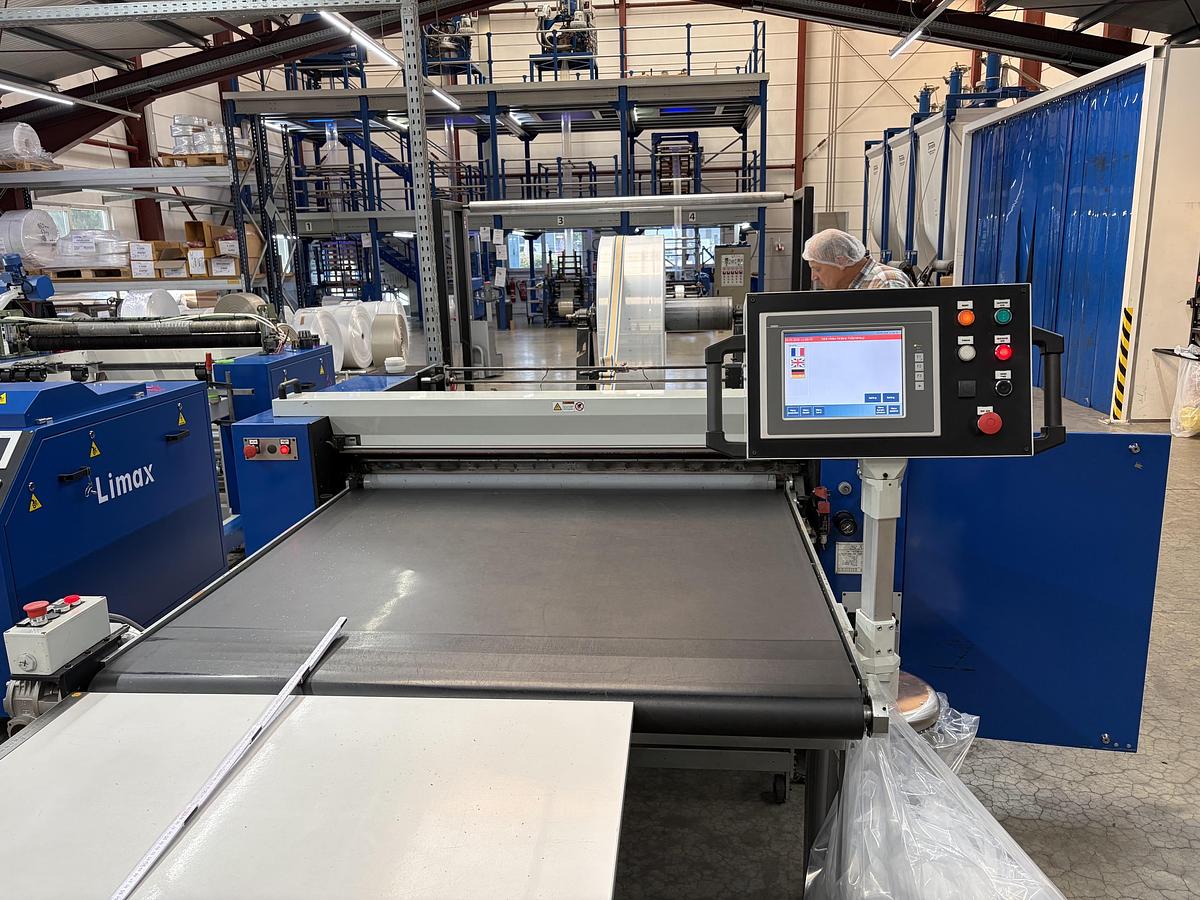

Stacking conveyor belt 1,3 meter

Air consumption: 30 m³/h

Power consumption: 14 kW

400Volt/50Hz

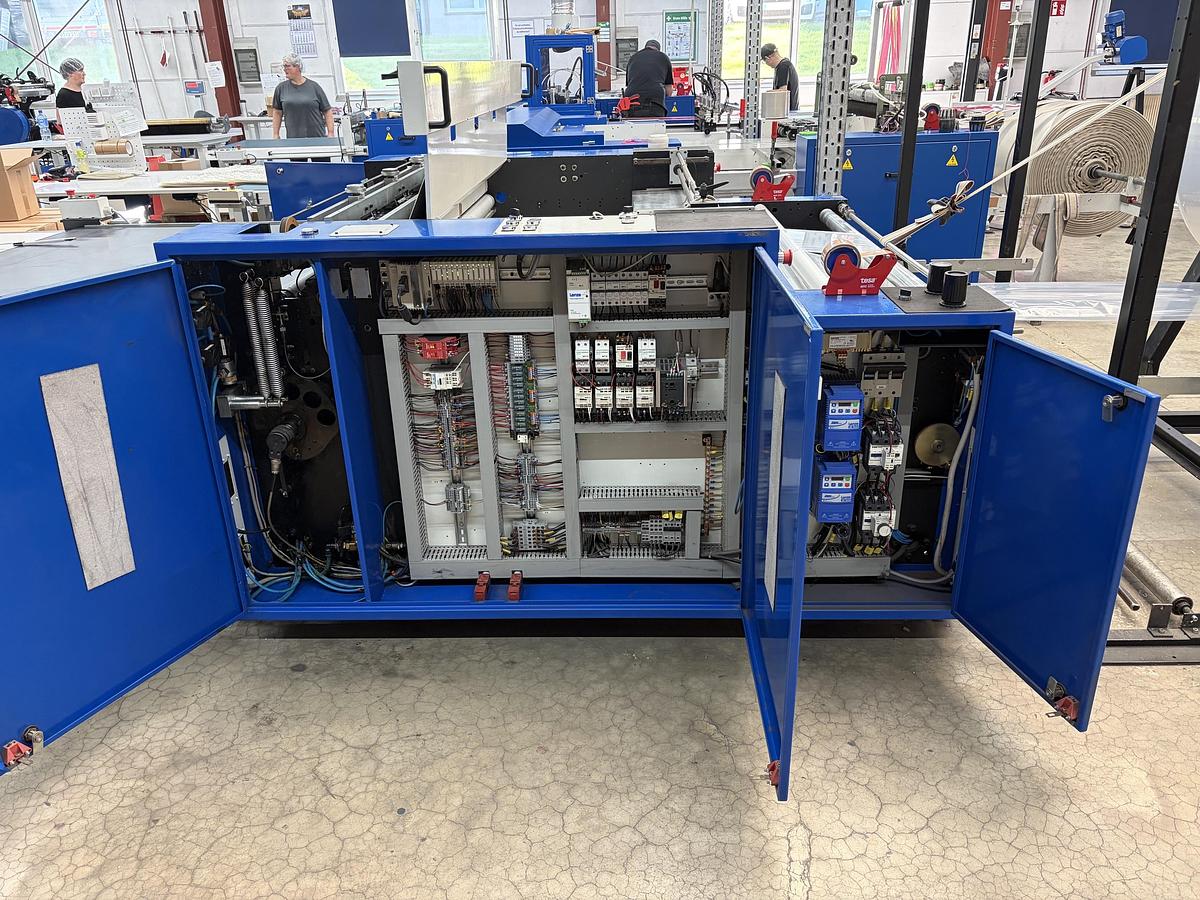

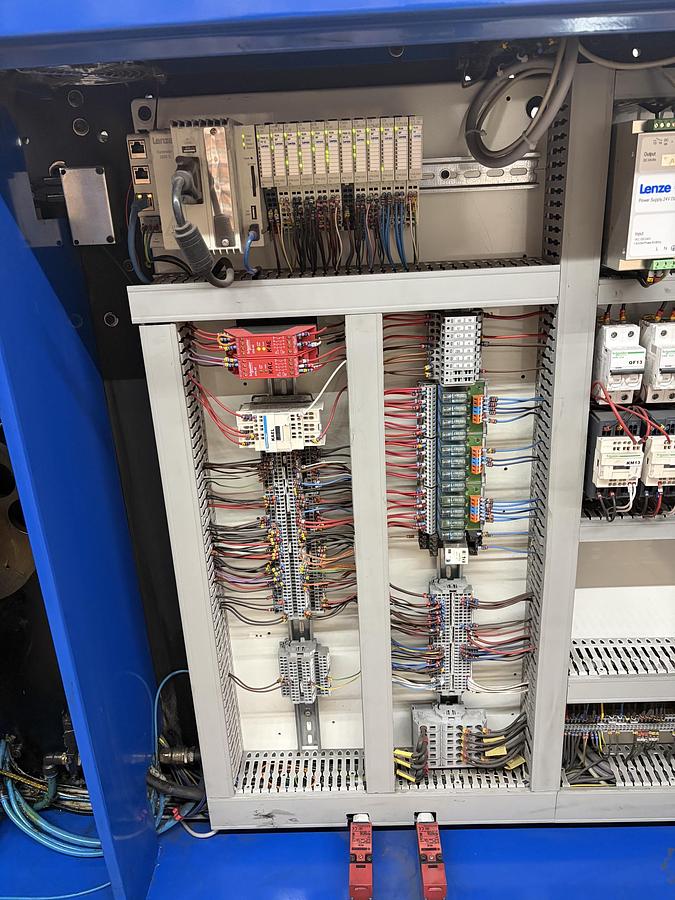

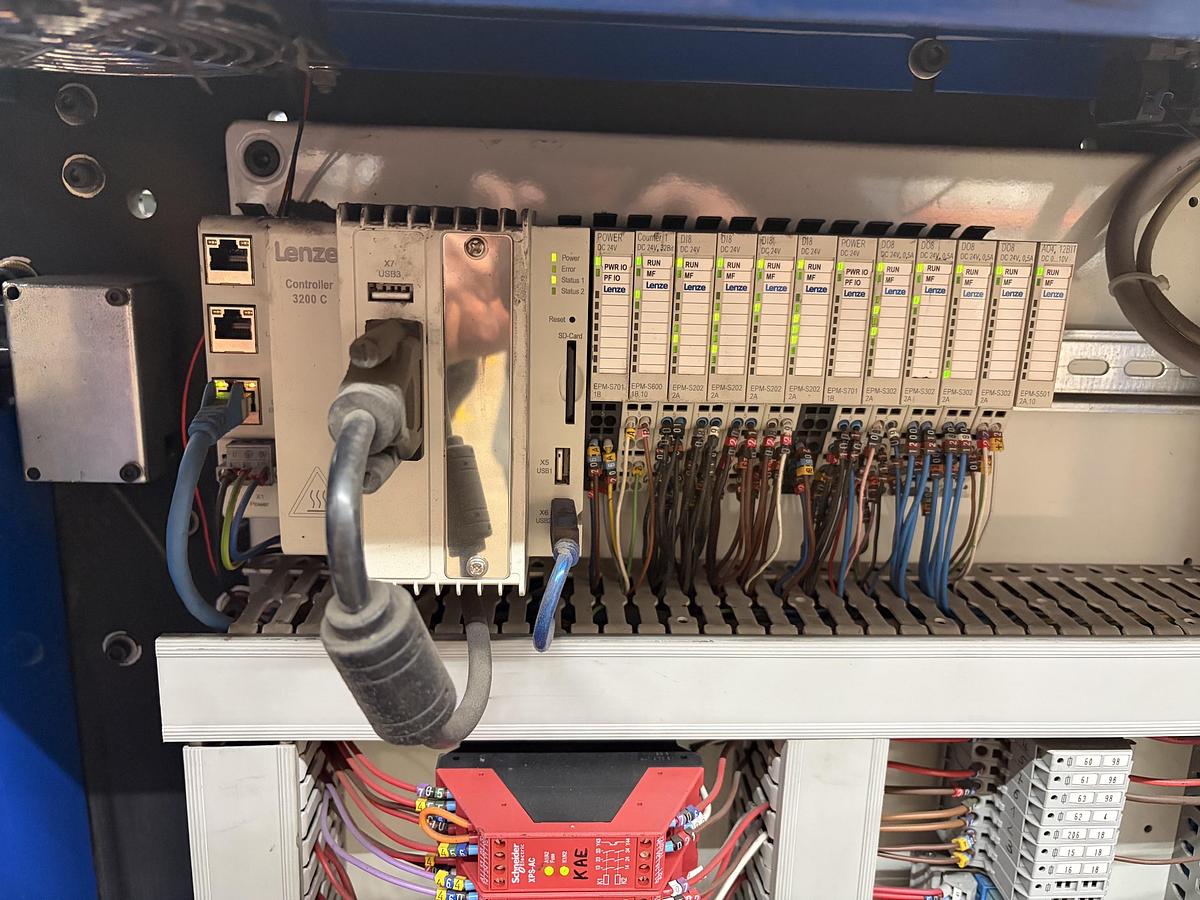

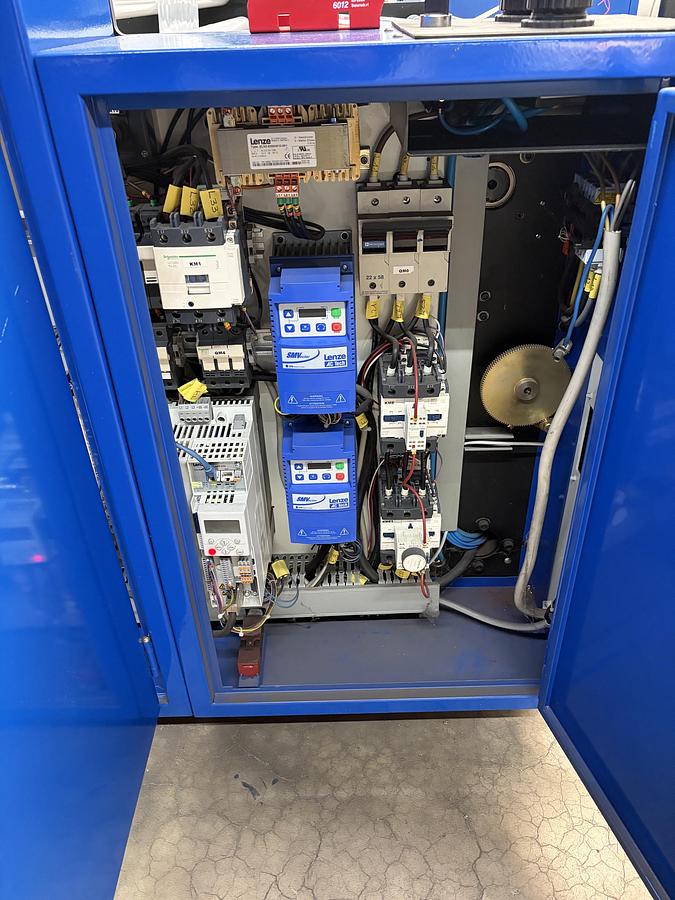

Clean electrical cabinet

Machine in good condition
