2026 Chovyting CW-1000SW Fully Automatic Sine Wave Bag Making Machine
2026 Chovyting CW-1000SW Fully Automatic Sine Wave Bag Making Machine
or
Call +32 53 67 07 89
Description
Fully Automatic Sine Wave Bag Making Machine
Main Features

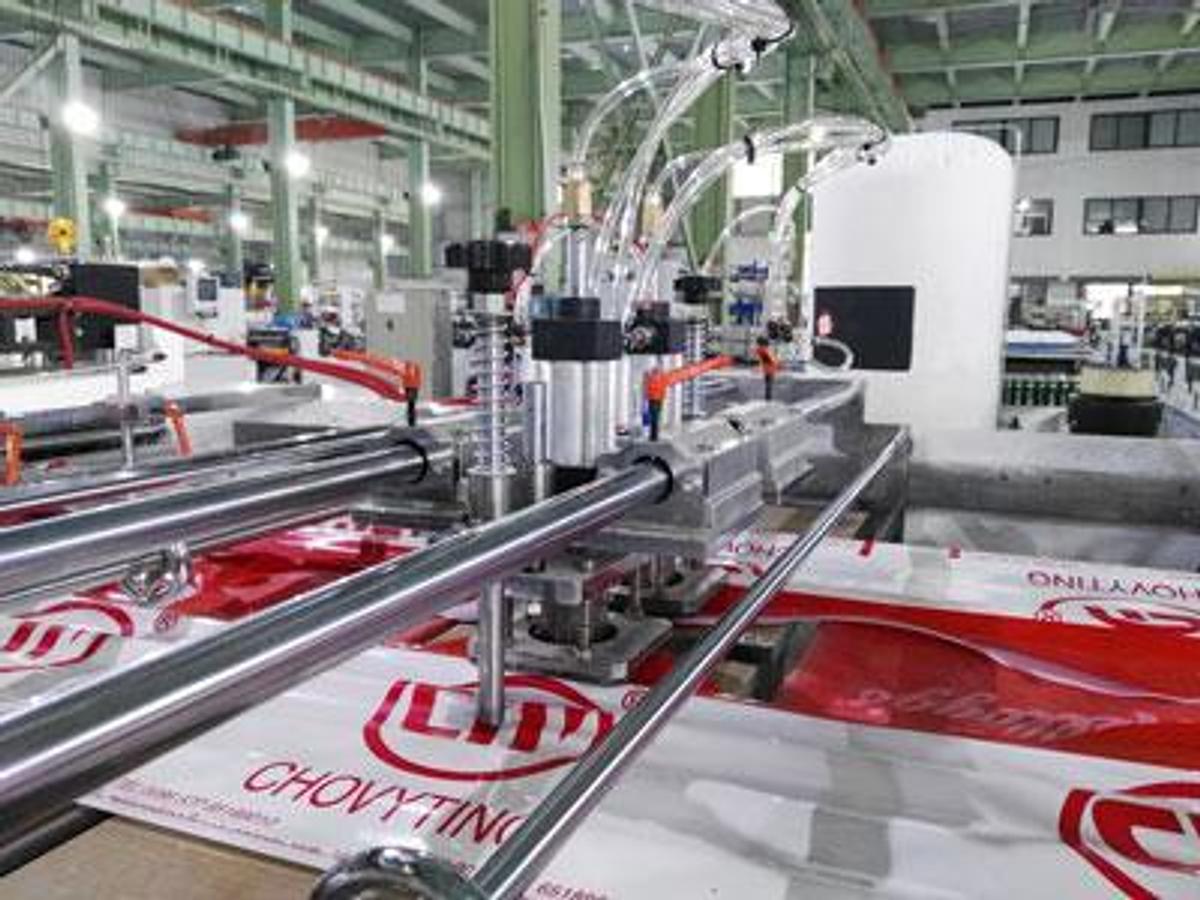

This sine wave bag making machine is the high quantity wave top bag making machine,fully automatic design,easy operation.1.Newly design sine wave bag with longitudinal seal knife structure.
2.Newly design side sealing water circulate cooling device.
3.2 wave bag at one time without punching waste comparing with traditional production way
Optional Equipment
Bottom seal and double seal knife.
Specifications
| Manufacturer | Chovyting |
| Model | CW-1000SW |
| Year | 2026 |
| Condition | New |
| Thickness of film | LDPE: 0.035- 0.08mm |
| Dimension of machine( LXWXH) | 8500×2500×2050mm |
| Weight | 3500kg |
| Air compressor | 6HP (not include) |
| Bottom Gusset | 30-150mm |
| Speed of bag making | 30-90pcs/min (sine/wave bag) |
| Bag Type | side sealing and sin wave bag |
| Orientation | from right to left |

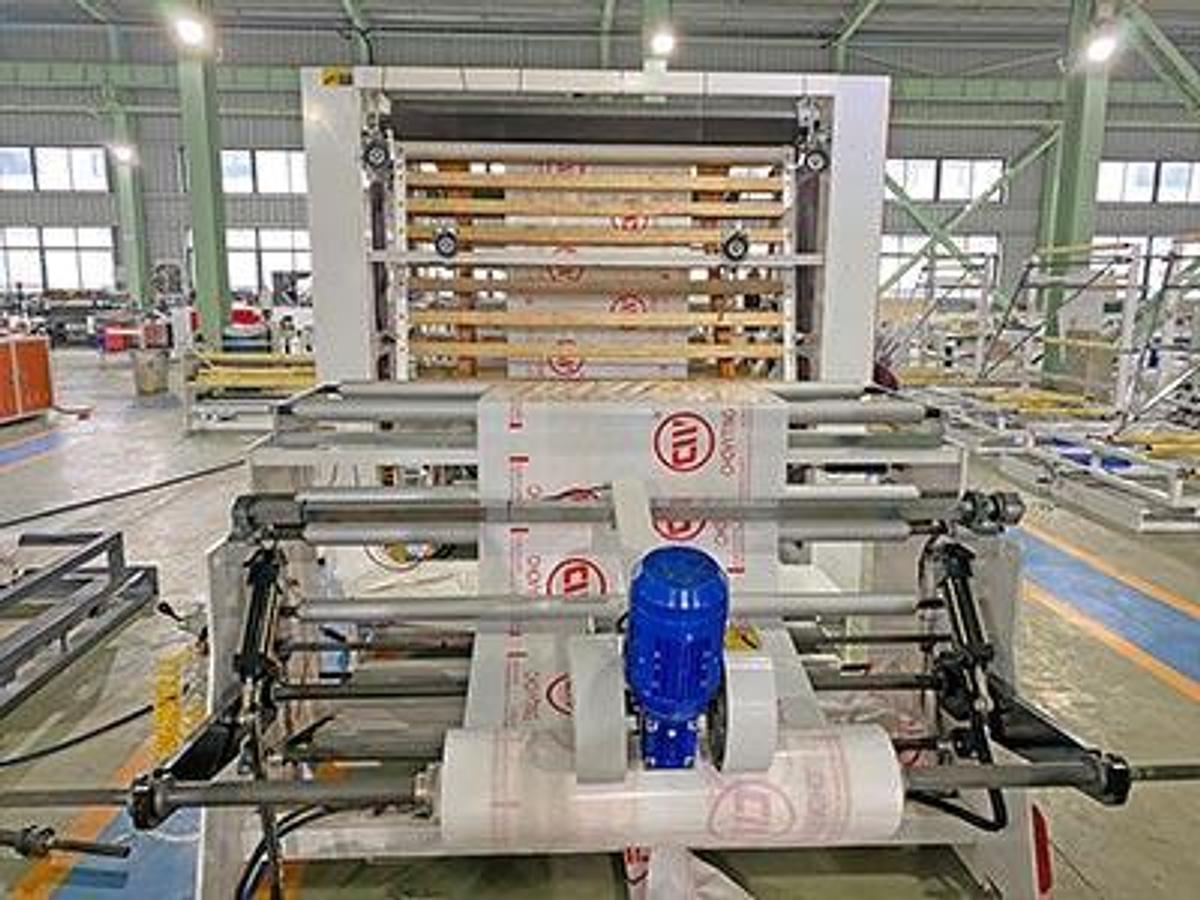

| Unwinder width | 1400mm(tube film) |
| Diameter of unwinder | ￠900mm(max) |
| Width size of bag | sine bag: 250-750mm |
| Length size of bag | sine bag: 250-450mm |
| S type cutting height | 50mm -200mm |
| Noise | About 80 decibel |
| Power | 3P-415V-50HZ(optional) |
