Stiegler US-S 800

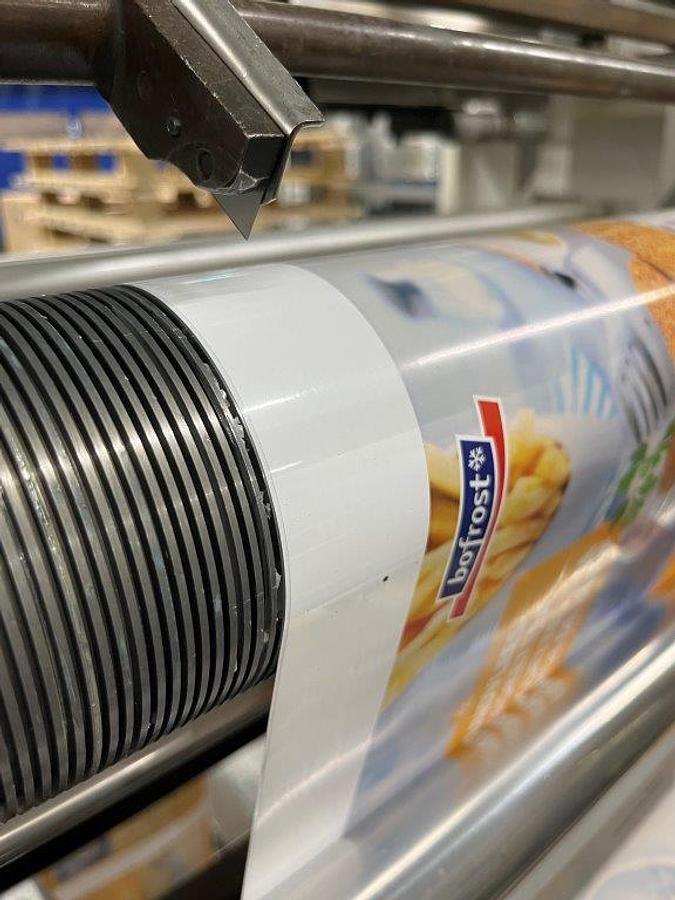

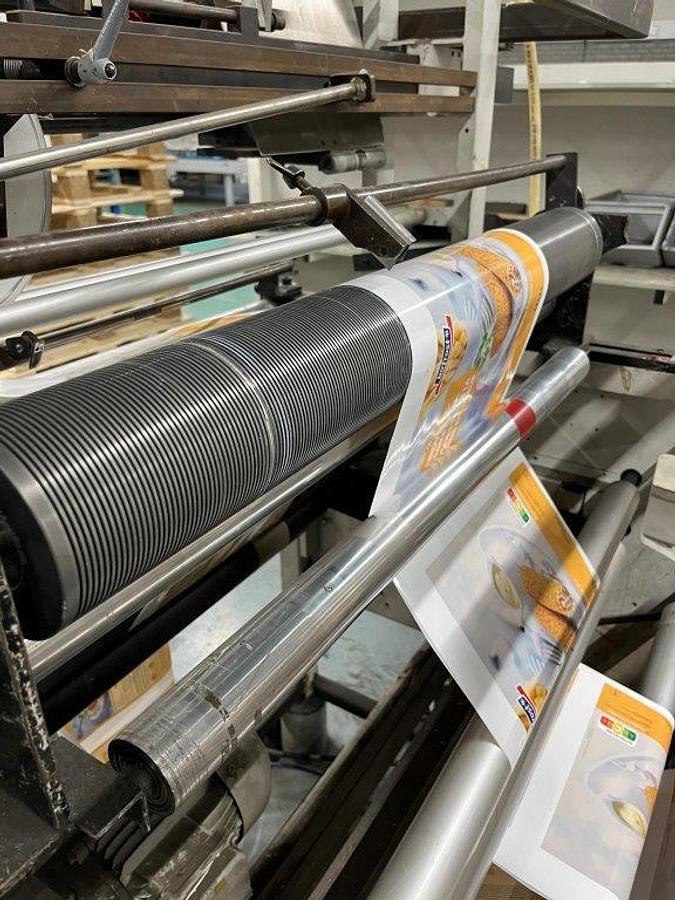

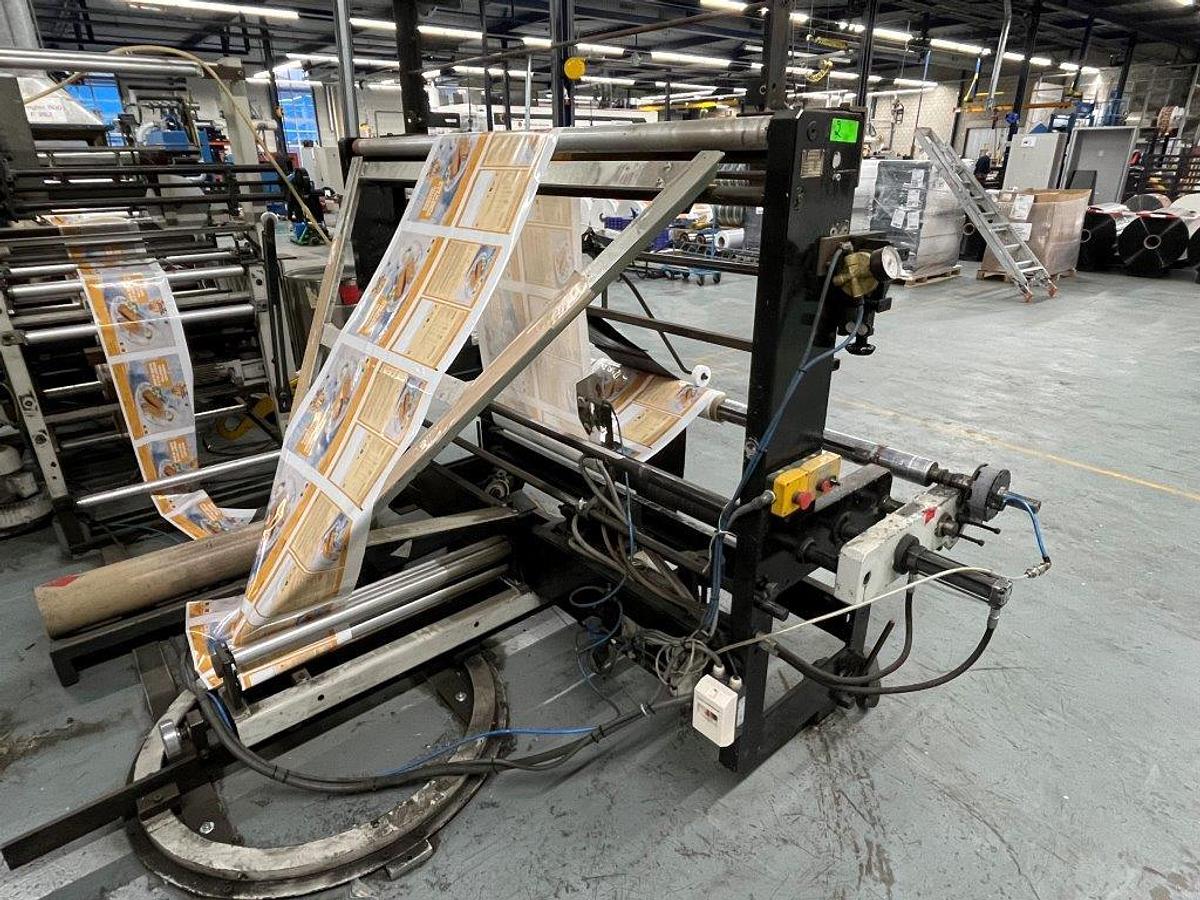

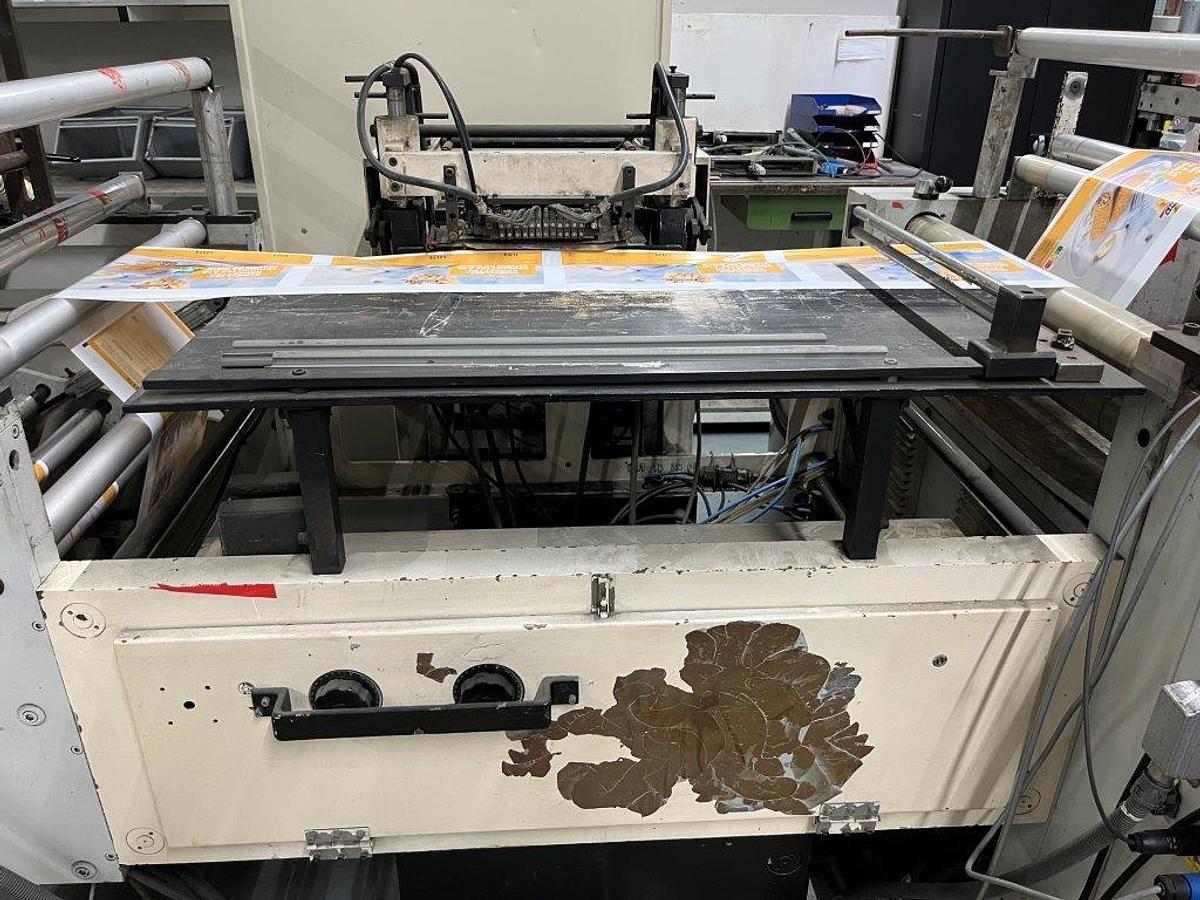

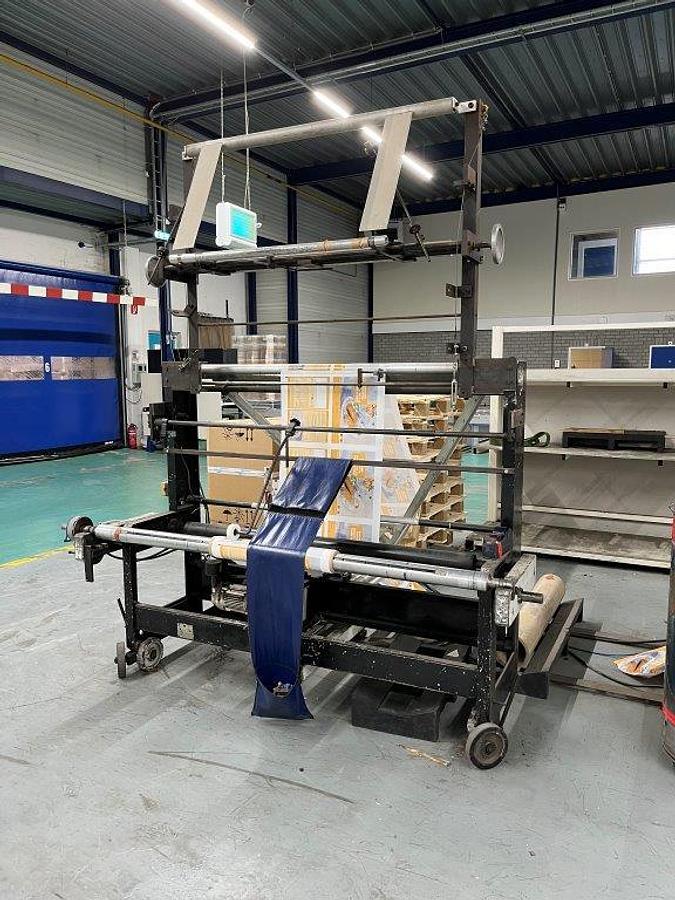

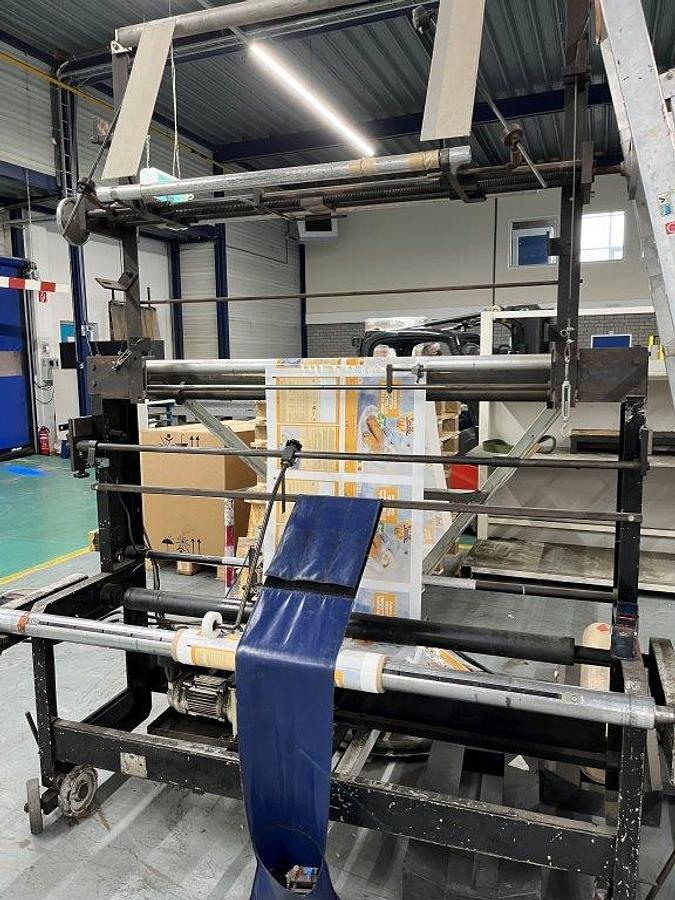

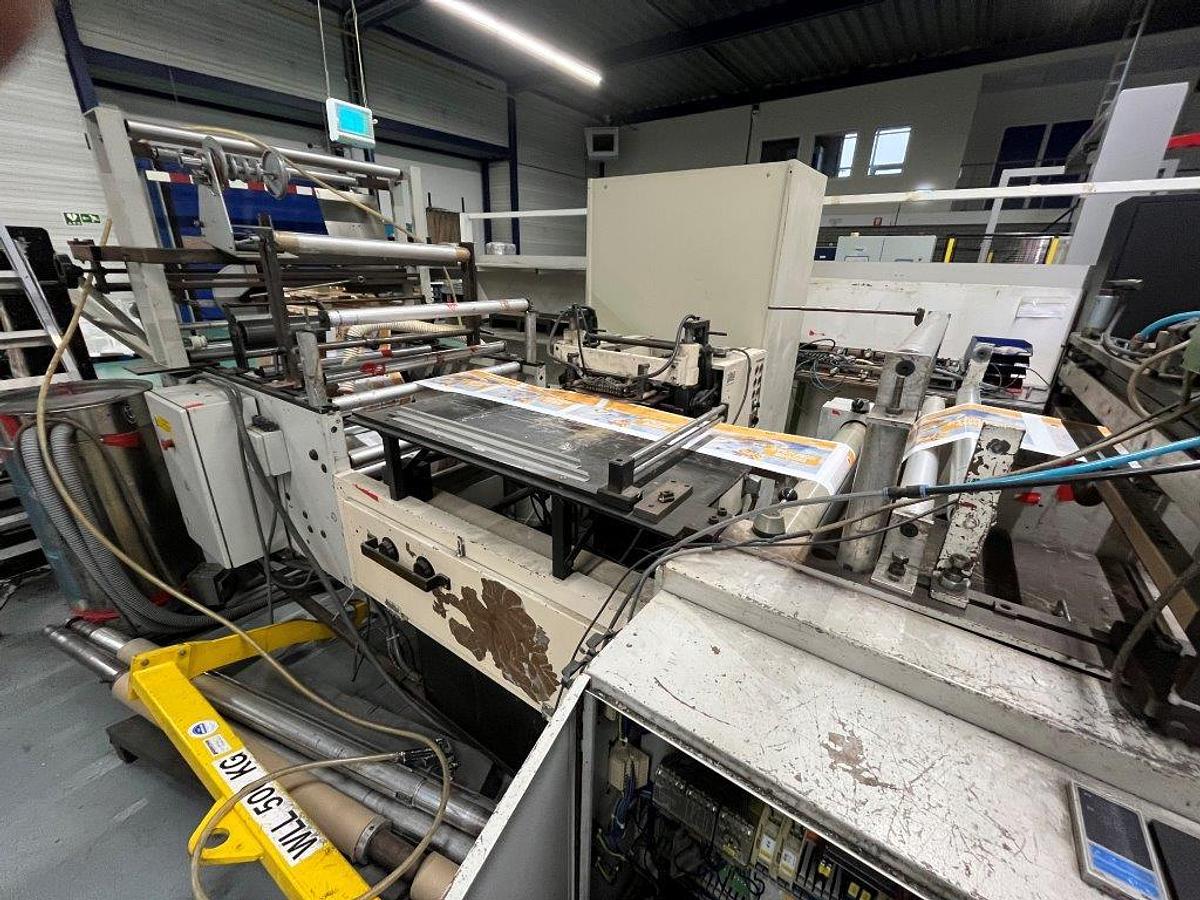

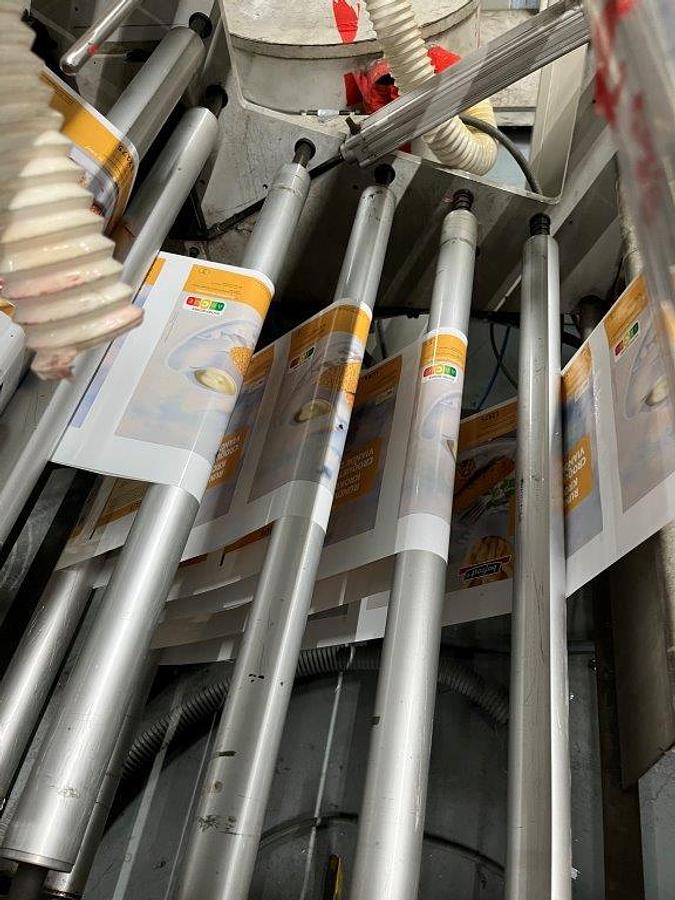

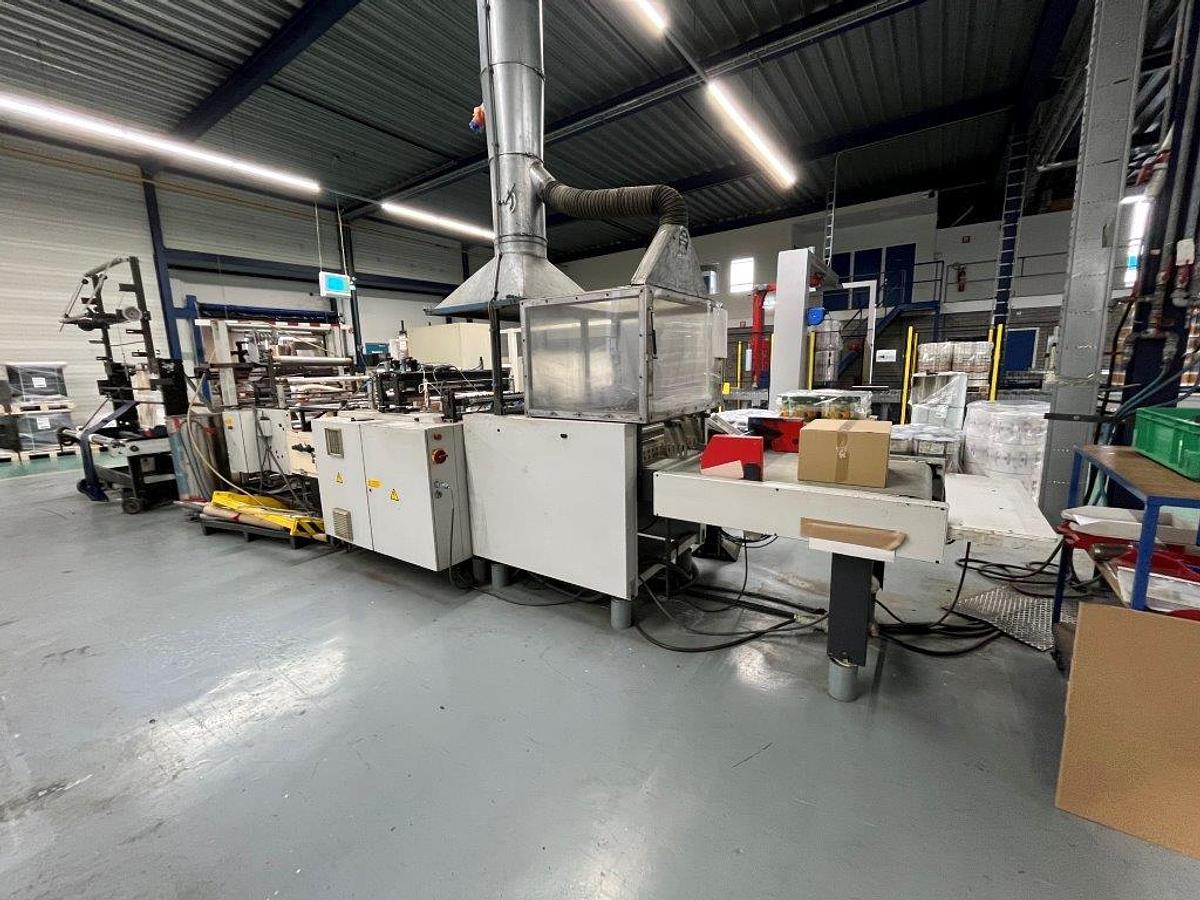

Side sealing machine 380 V, 50 Hz Servo motor for bag feeding (original servo system made by Stiegler) Sealing bar for PP and thin LDPE equiped with thermocouple Sick photocell for printed film 2 x Stiegler perforation bank to make ventilation holes in the bag during production 2 x Vacuum pump + drum to collect punching scrap Stiegler bottom gusset disk to make bottom gusset Folding system to make a lip on bag Self-adhesive tape dispenser unwinding unit with brake system Rubber infeed rollers at the back side to pull the film from unwind + folder Dancer rollers with potentiometer to control the infeed speed Special steel roll with grooves + razor blade to cut off trim waste (scrap) Cutting knife to cut off trim waste Patch handle unit to make sealed patch at outside of the bag (not used since 10 years) Unwinding unit of approx. 1500 wide with air shaft Air controlled brake on air shaft Unwinding unit on wheels to turn 90 degrees to run inline with machine V-folding unit Lip turning folders (left & right) to fold a inside lip Fife edge guide on unwinding unit Stacking conveyor belt + operator panel
