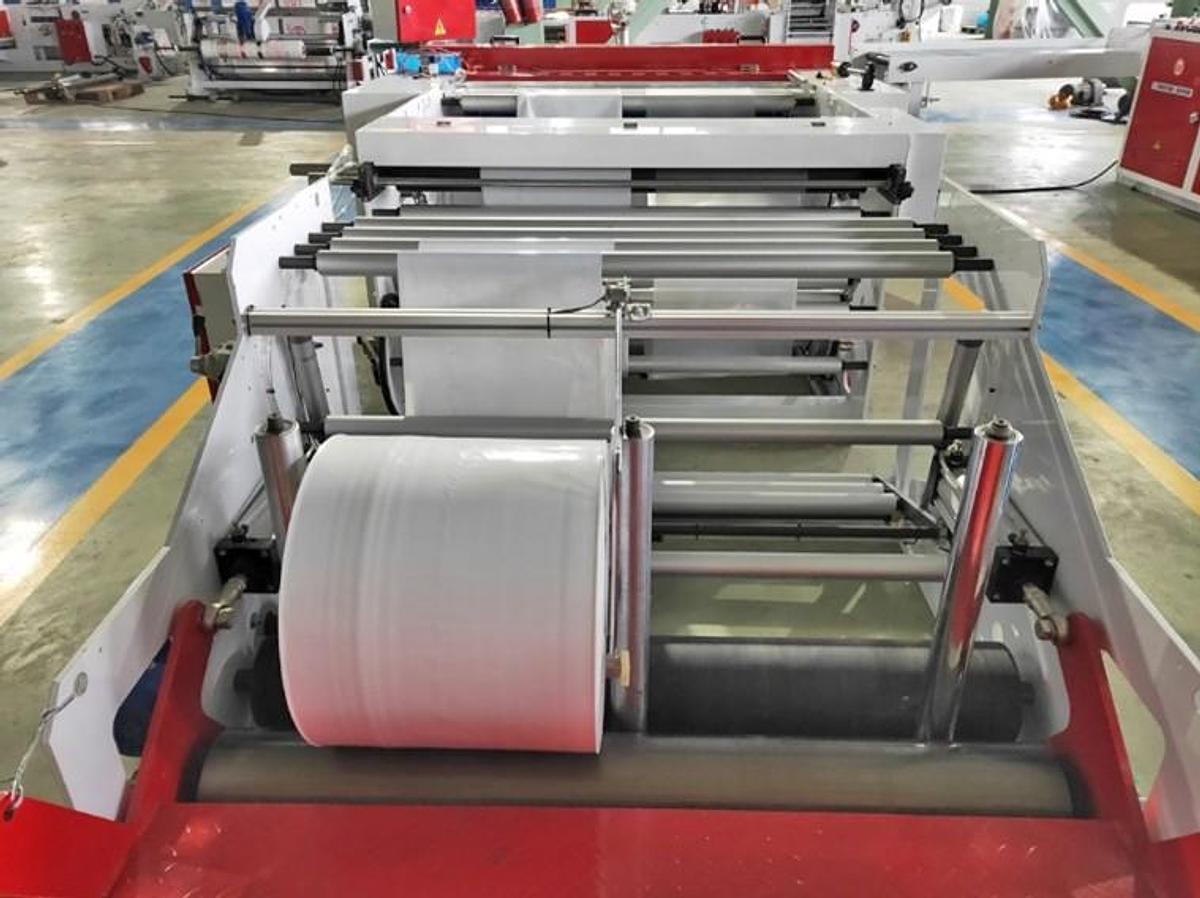

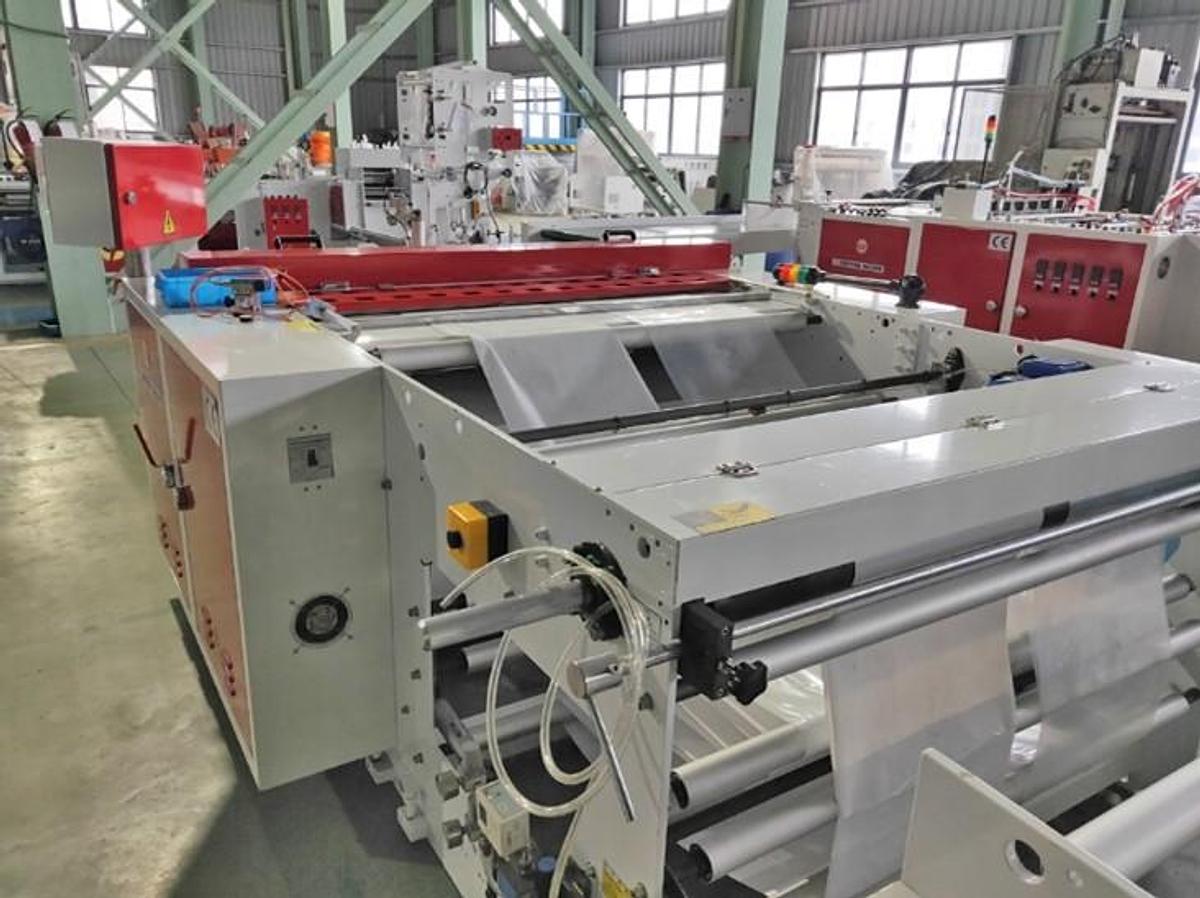

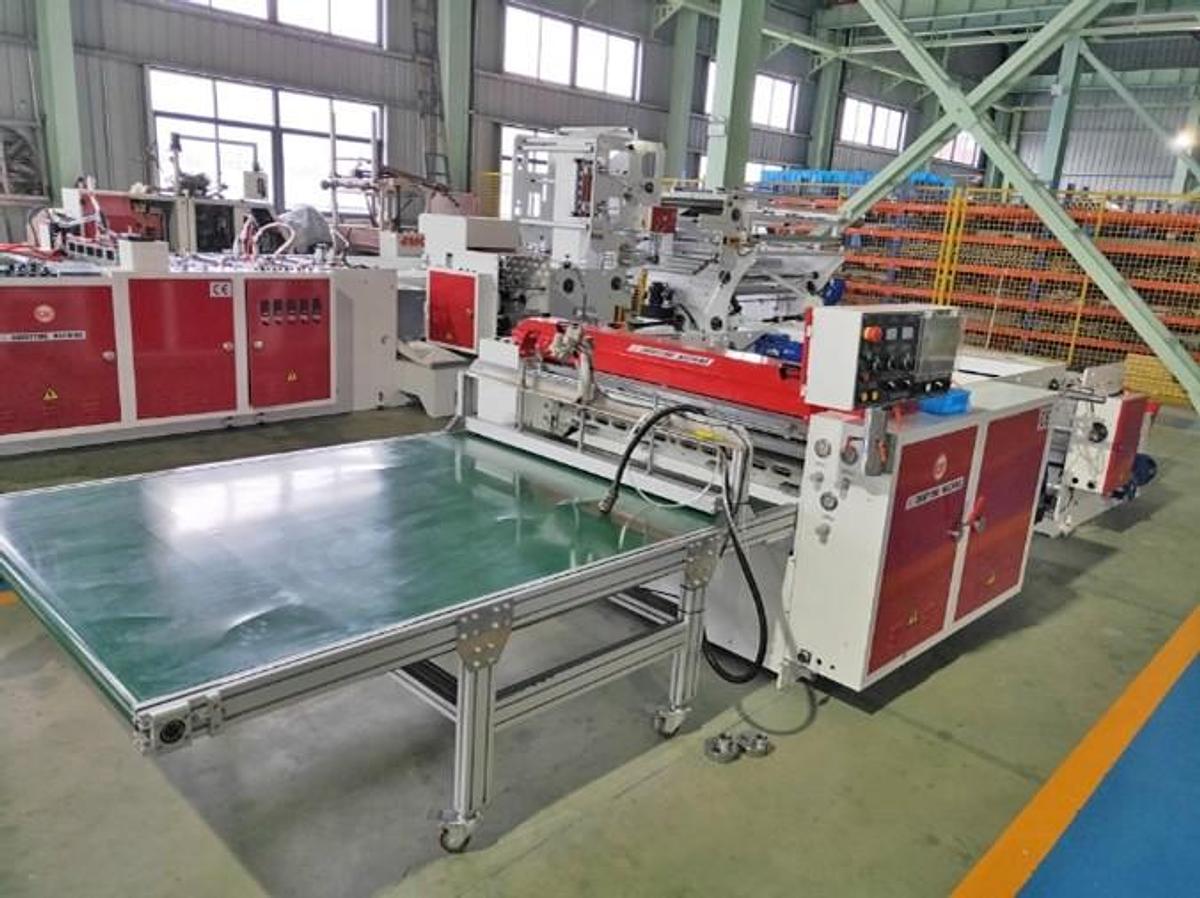

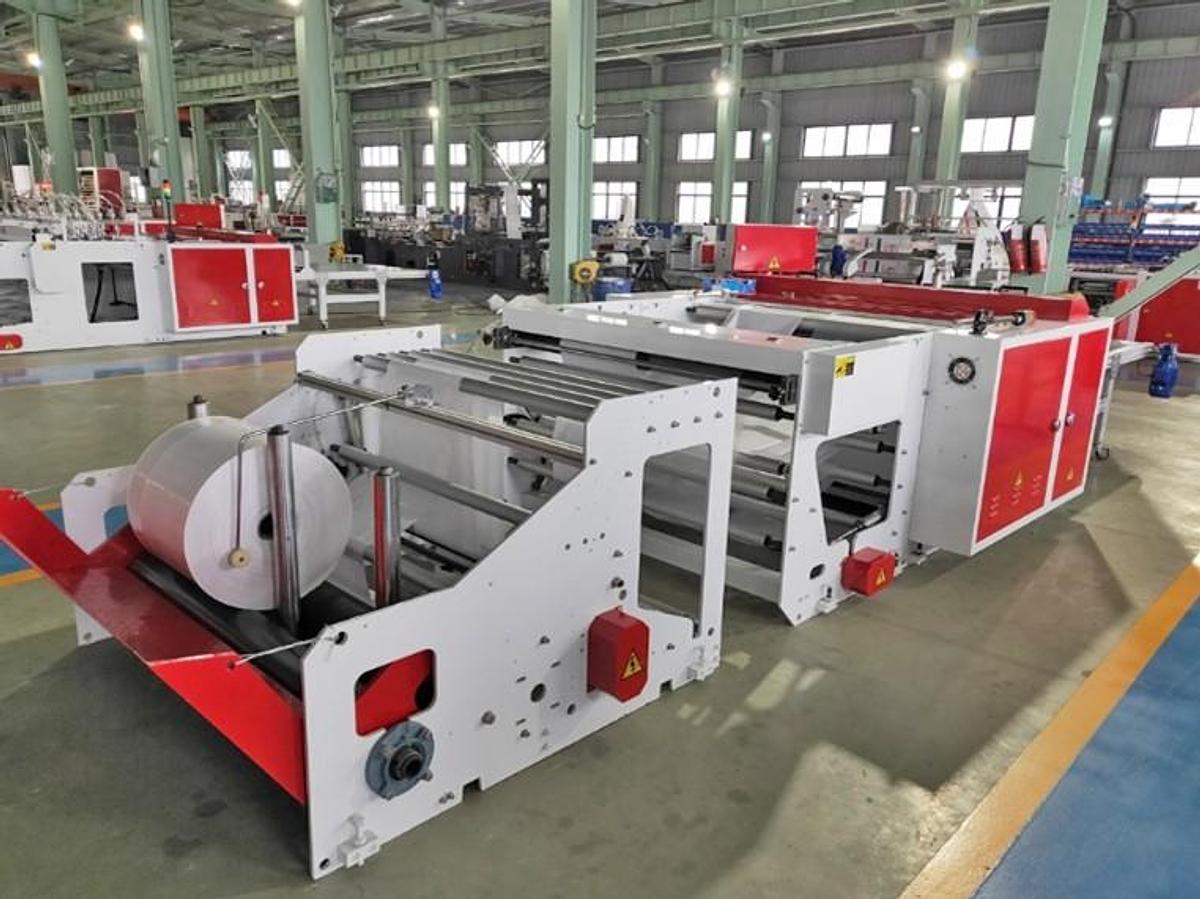

CW-1400FB Fully Automatic Bottom Sealing Bag Making Machine By Flying Knife System
CW-1400FB Fully Automatic Bottom Sealing Bag Making Machine By Flying Knife System
or
Call +32 53 67 07 89
Description
Heavy duty bottom sealing bag making machine, which is specializing in producing tension less bag.
Main Features
1. Newly design flying knife cutting system, easy to exchange the blade.
2. Double electric hot heating sealing design, sealing firmly.
3. The entire stack, the entire output.
4. Can make multi-lane non-print bag.
Optional Equipment
1. Hanger hole puncher device.
2. V type sealing device.
3. Surface friction unwinding device.
4. Double servo feeding for producing double lane print bag.

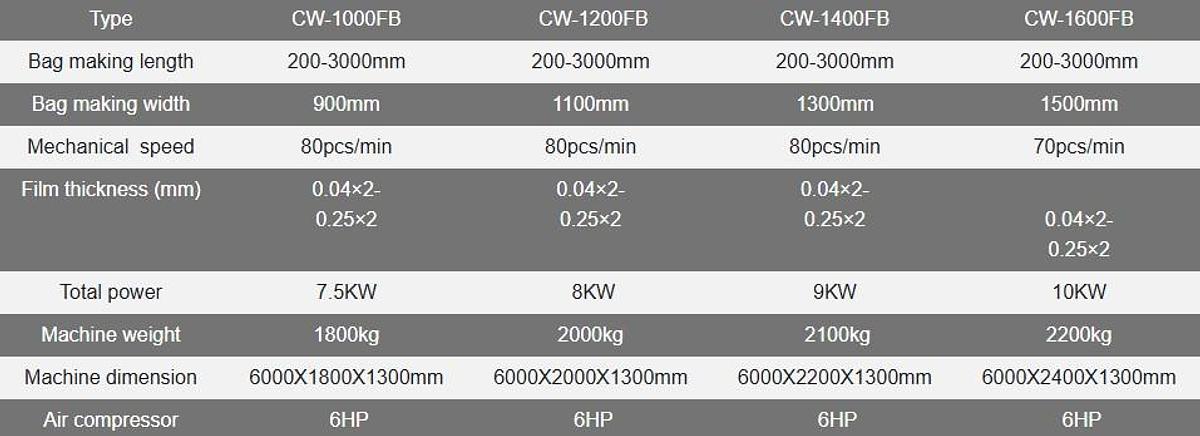

Specifications
| Manufacturer | Chovyting |
| Model | CW-1400FB |
| Condition | New |
| Stock Number | CW-1400FB |
| Min. bag length | 200 mm |
| Max.bag length | 3000 mm |
| Max. unwind diameter | 1000mm |

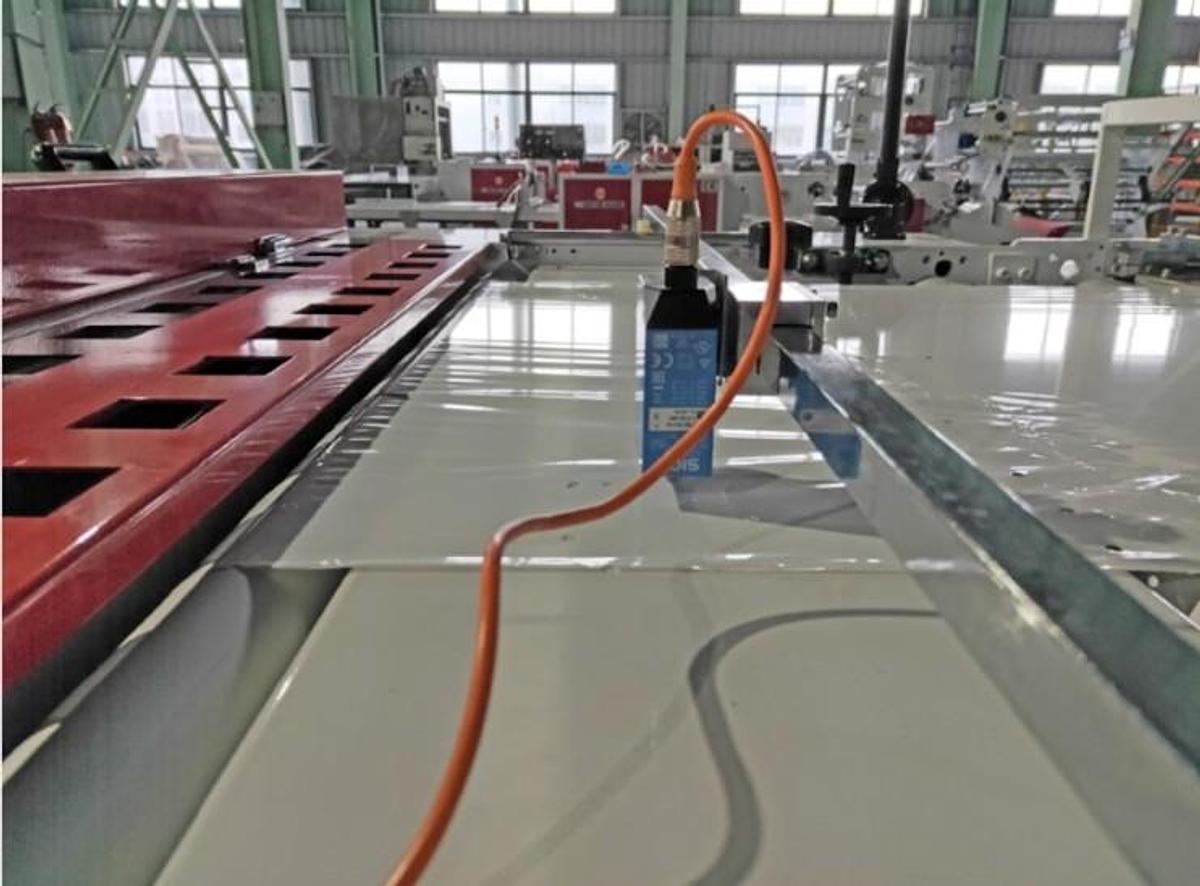

| Photocell for printed film | Yes (Datalogic) |
| Cutting system | Cold flying knife system with timing belt |
| Sealing system | Sealing wires |
| Servo motor | Yaskawa Japan |
| Intverter | Yaskawa Japan |
| PLC control | Panasonic Japan |
| Certification | CE/ISO: 9001 |
